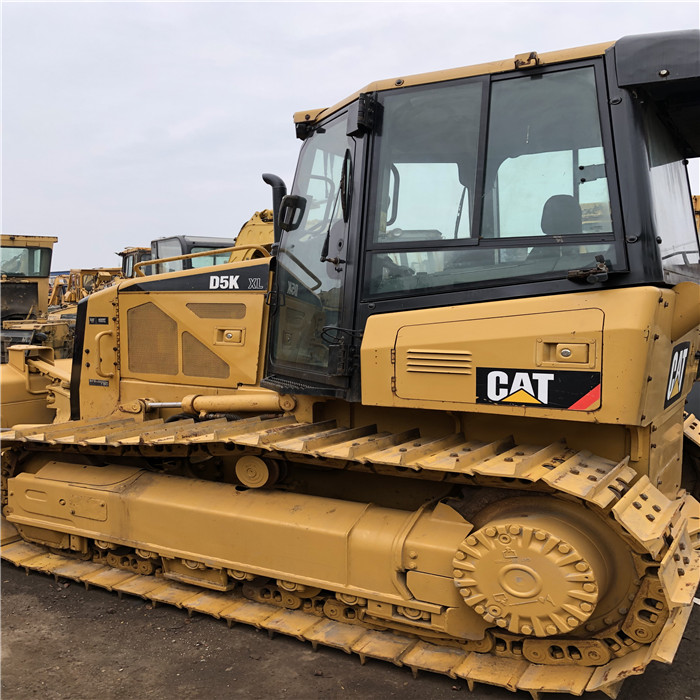

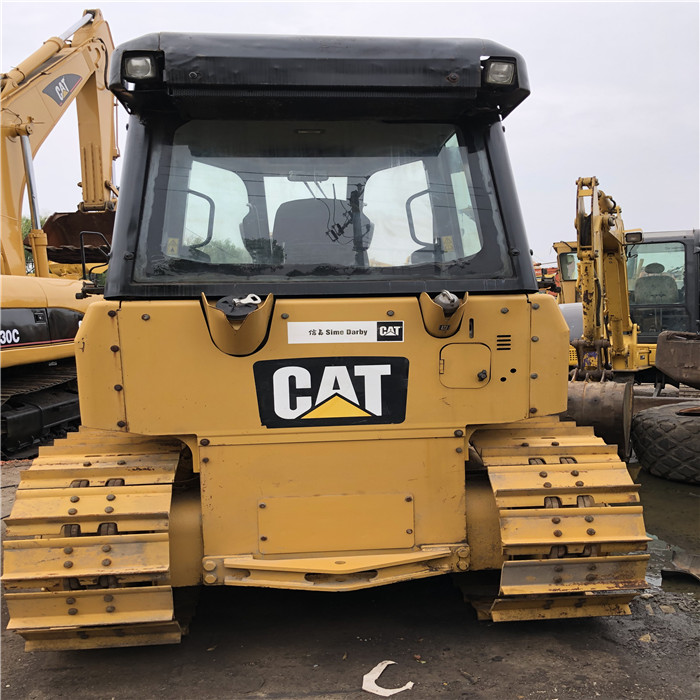

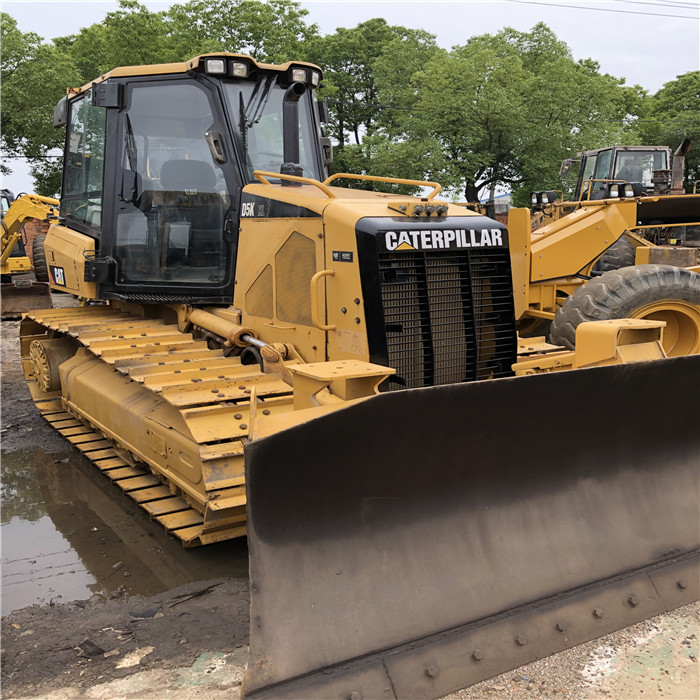

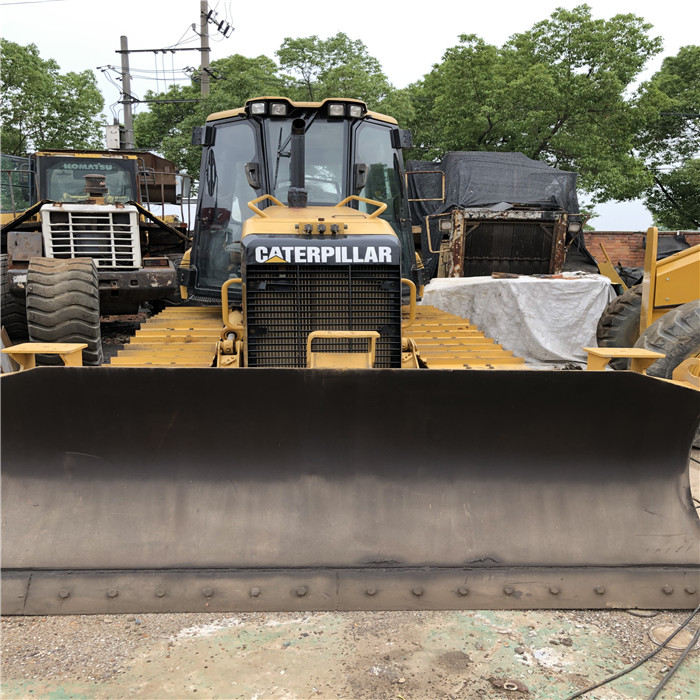

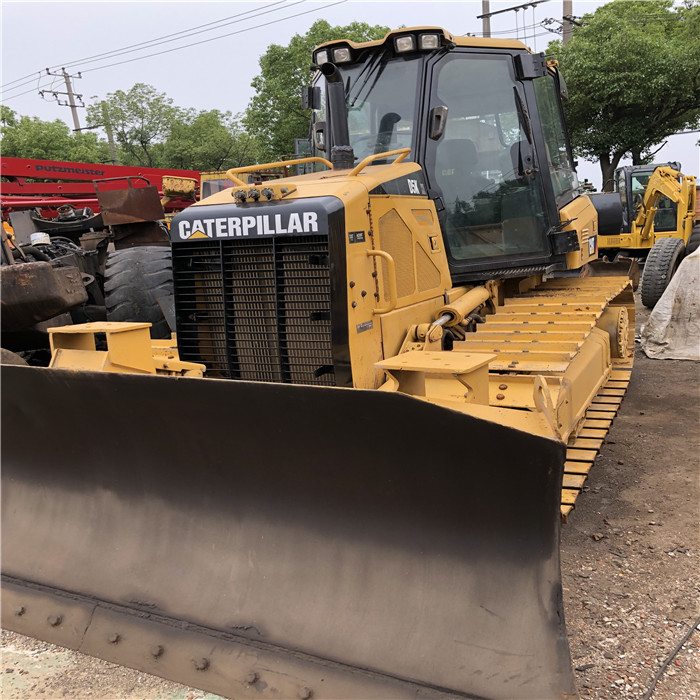

Carterpiller D5K bulldozer dry terrainCaterpillar CAT®D5K2 Track-Type Tractor Specifications engine Engine Model Cat C4.4 ACERT Net power 71.6 kW Displacement 4.4 l Bore size 105.0 mm Stroke 127.0 mm NOTICE Engine meets Tier 3/Stage IIIA equivalent emissions standards. Net power rating at 2200 rpm – ISO 9249/EEC 80/1269 71.6 kW Net power rating at 2200 rpm – SAE J1349 71.6 kW gearbox drive pump 1 Track Motor 2 Maximum travel speed - 9.0 km/h forward Maximum travel speed - reverse 10.0 km/h weight Working weight - XL 9110.0 kg Operating Weight - LGP 9418.0 kg Maintenance and filling capacity Cooling system 22.4 l Transmission/hydraulic tank 59.5 l Crankcase and filter 11.0 l Fuel tank 195.0 l Ground Pressure - LGP 31.1 kPa Ground Pressure - XL 38.6 kPa Track shoe width – LGP 660.0 mm Track shoe width – XL 510.0 mm Ground Track Length - LGP 2310.0 mm Ground Track Length - XL 2310.0 mm Ground Area – LGP 30492.0 cm2 Ground Area – XL 23562.0 cm2 size Track Gauge – LGP 1750.0 mm Track Gauge – XL 1600.0 mm Base Dozer Length (without blade) - LGP 3265.0 mm Base Dozer Length (without blade) - XL 3265.0 mm Overall length (with blade) – LGP 4309.0 mm Overall length (with blade) – XL 4309.0 mm Dozer Width (Standard Shoe, Without Blade) - LGP 2410.0 mm Dozer Width (Standard Shoe, Without Blade) - XL 2110.0 mm Dozer Height – LGP 2769.0 mm Dozer Height – XL 2769.0 mm Ground Clearance – LGP 332.0 mm Ground Clearance – XL 332.0 mm Hydraulic Controls Pump output 68.0 l/min Safety valve setting 48500.0 kPa Number of racks 3 Height 165.0 mm Overall width 741.0 mm Weight 610.0 kg The maximum extension distance on the ground is 555.0 mm Maximum excavation depth 337.5 mm Maximum ground clearance under tooth tip 448.0 mm

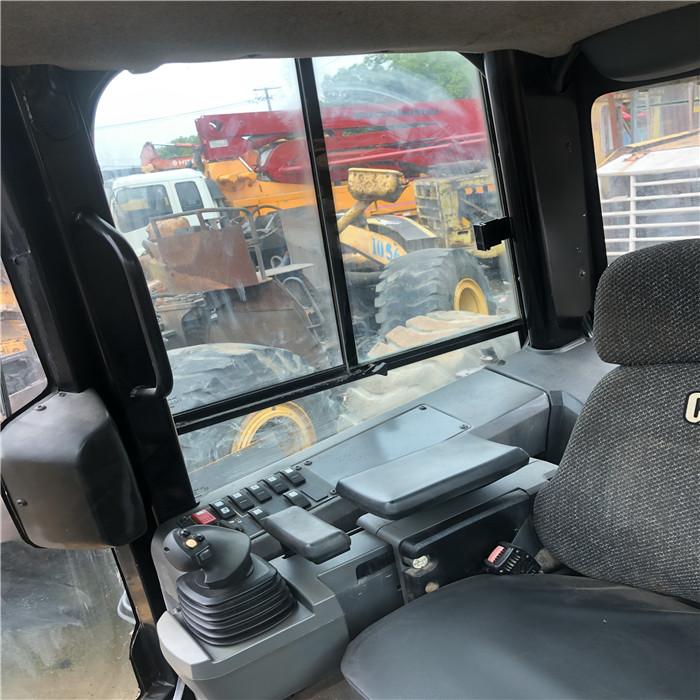

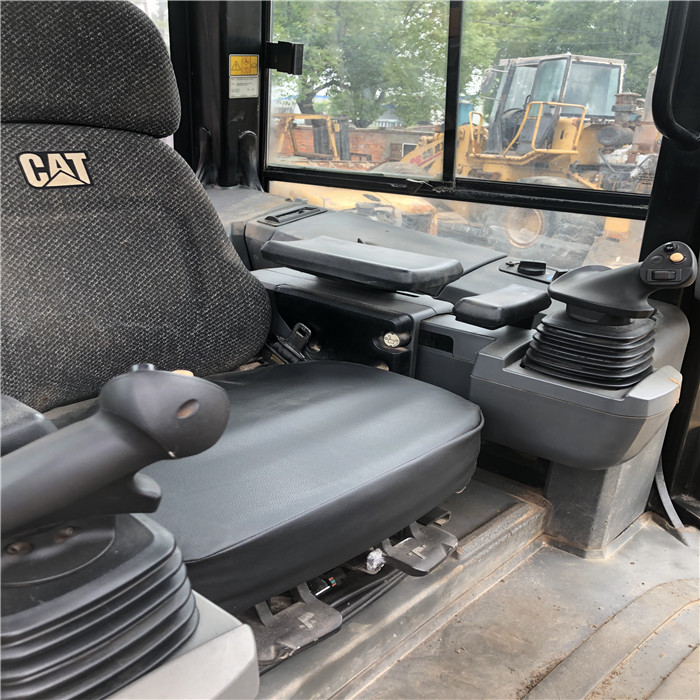

Caterpillar Company Caterpillar, as a top 500 company in the world, Caterpillar is a global leading enterprise in the field of construction machinery, mining equipment, diesel and natural gas engines, industrial gas turbines, and firewood hybrid power units. At the same time, Caterpillar is also a leading financial, re -manufacturing, logistics and railway service providers. Caterpillar D5K bulldozer Cat & Reg; D5K tracking bulldozer, while reducing operating costs, has excellent performance and comfort. The large cab is provided with a comfortable working area. The intuitive control device installed on the seat is easy to use, which can improve operating accuracy and efficiency.
|
