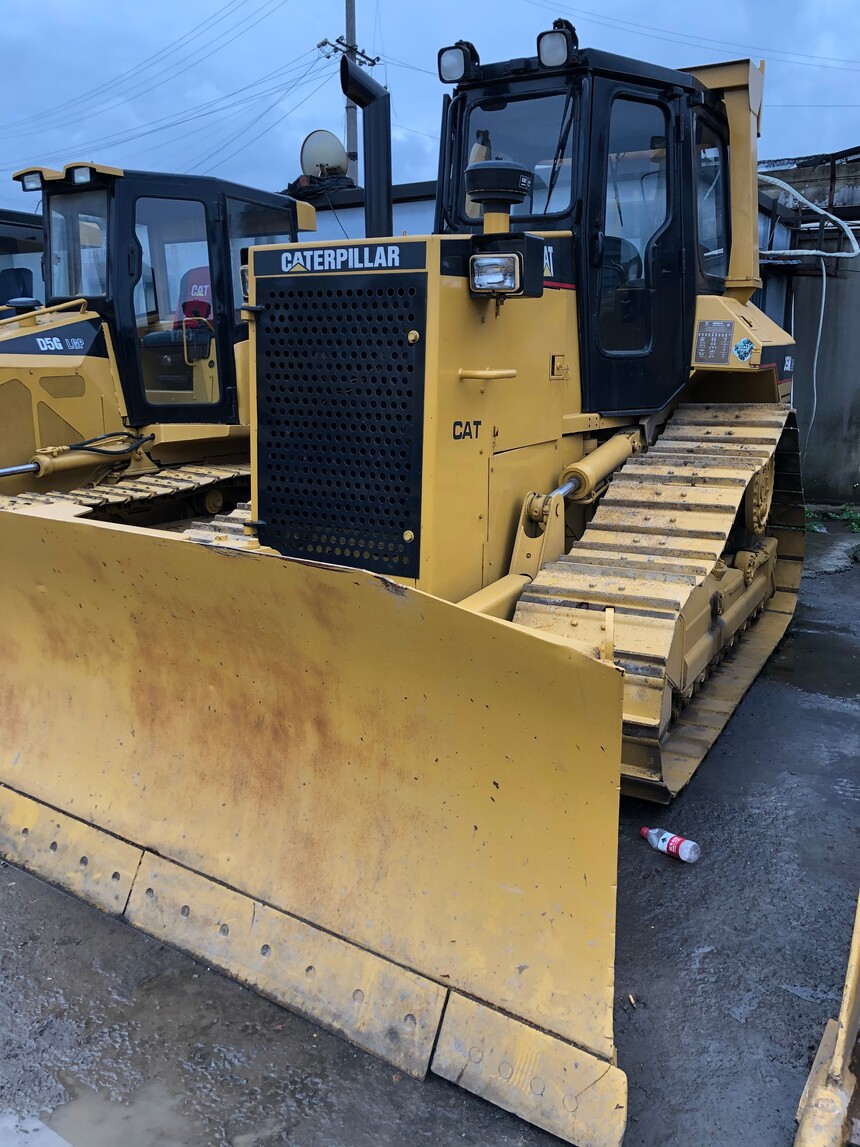

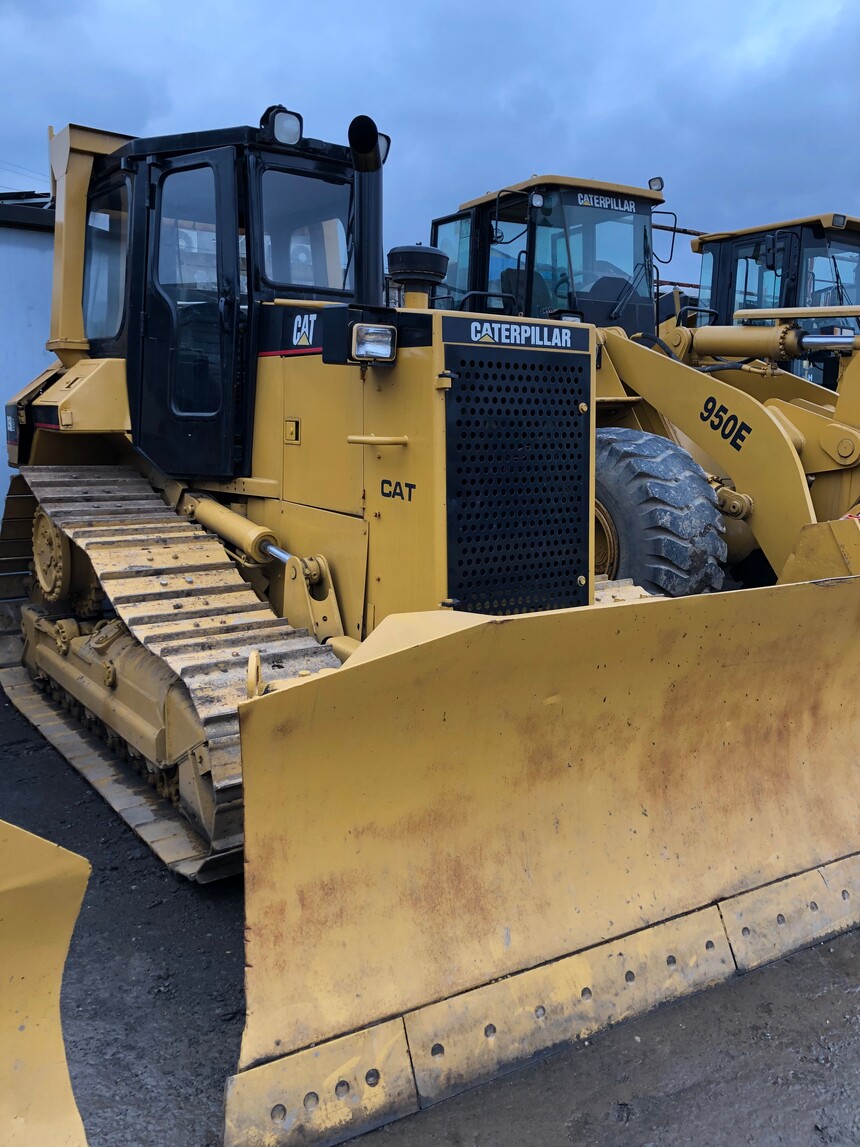

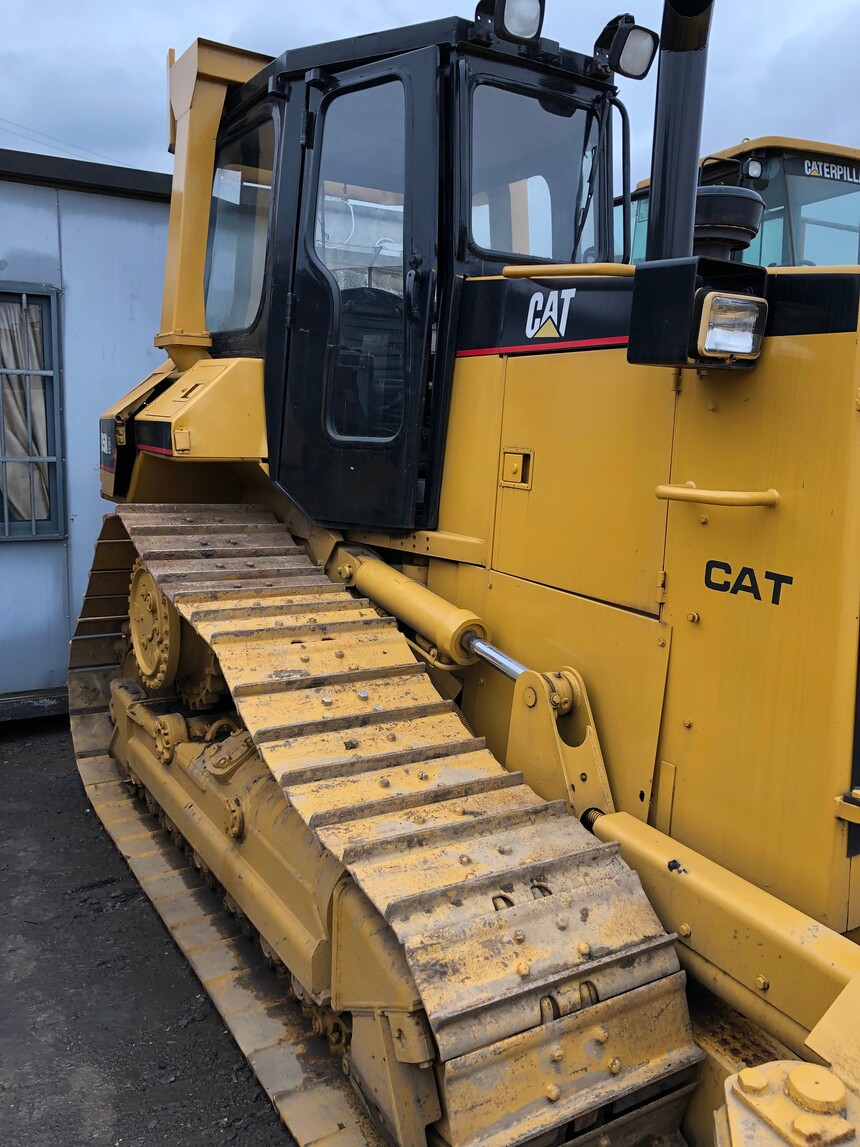

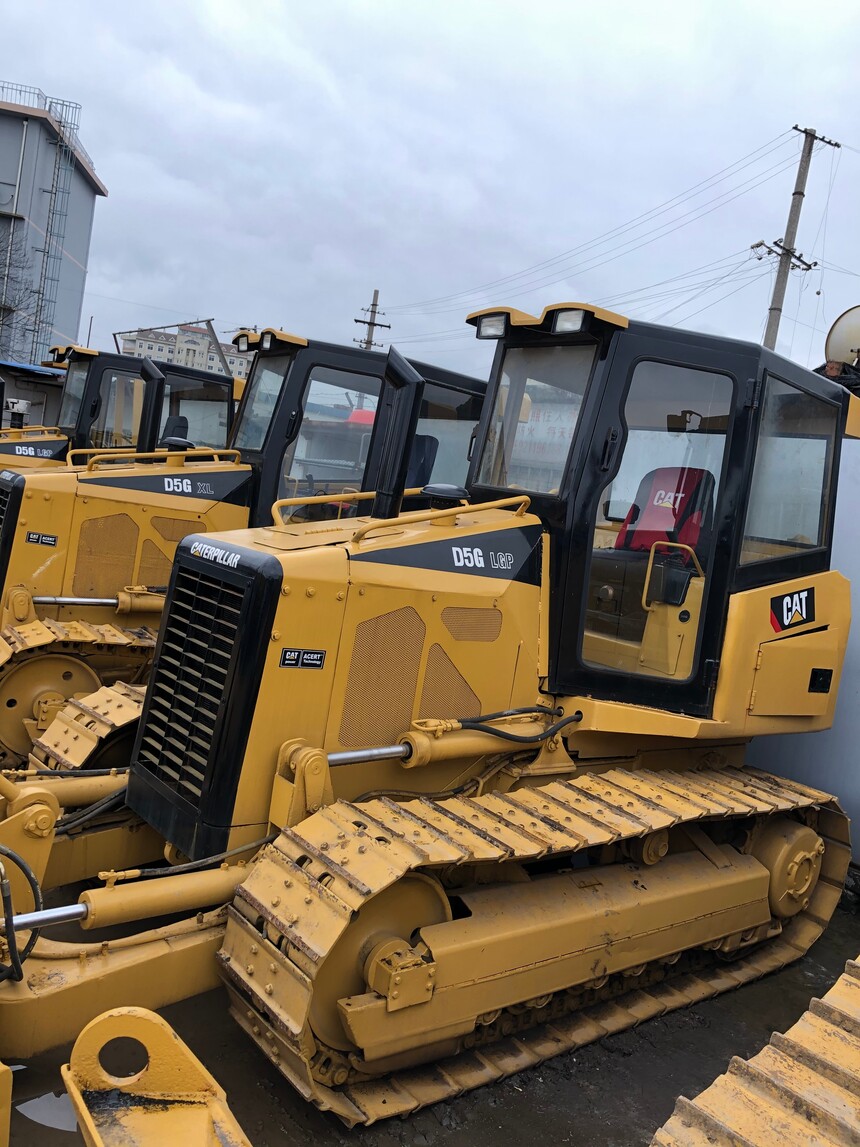

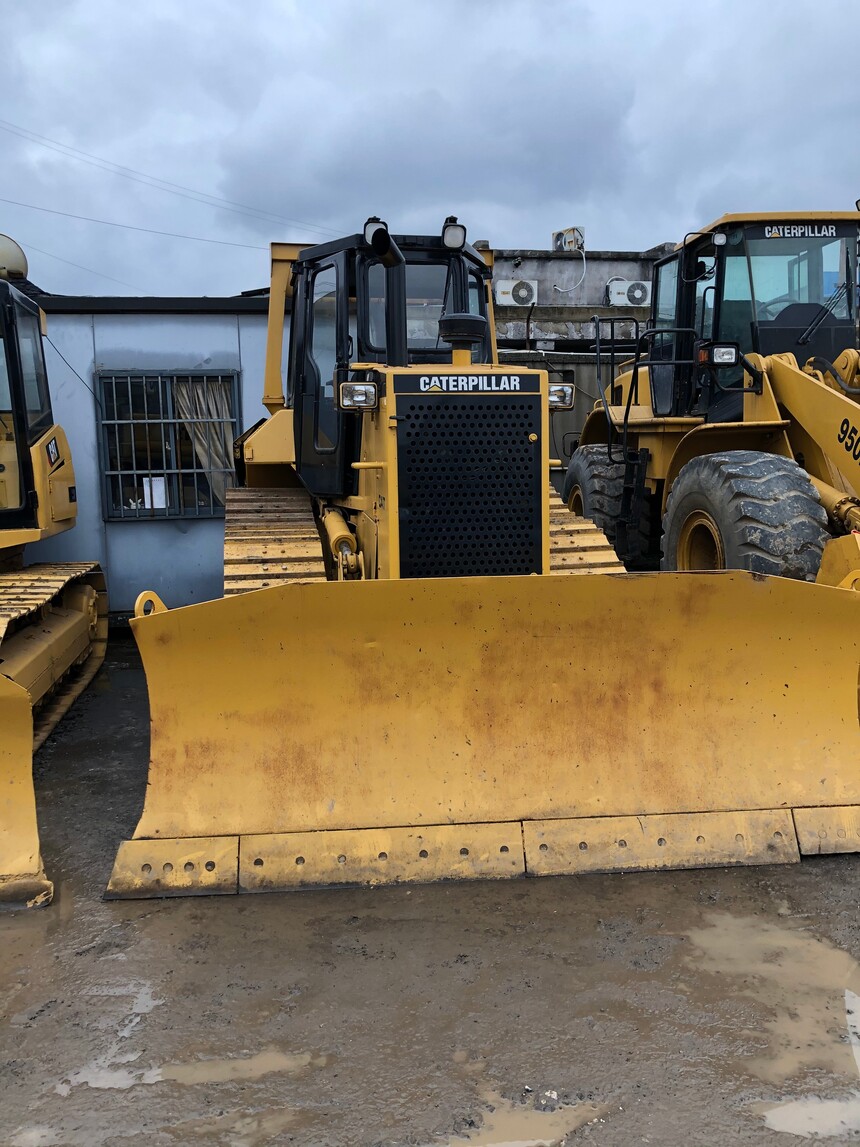

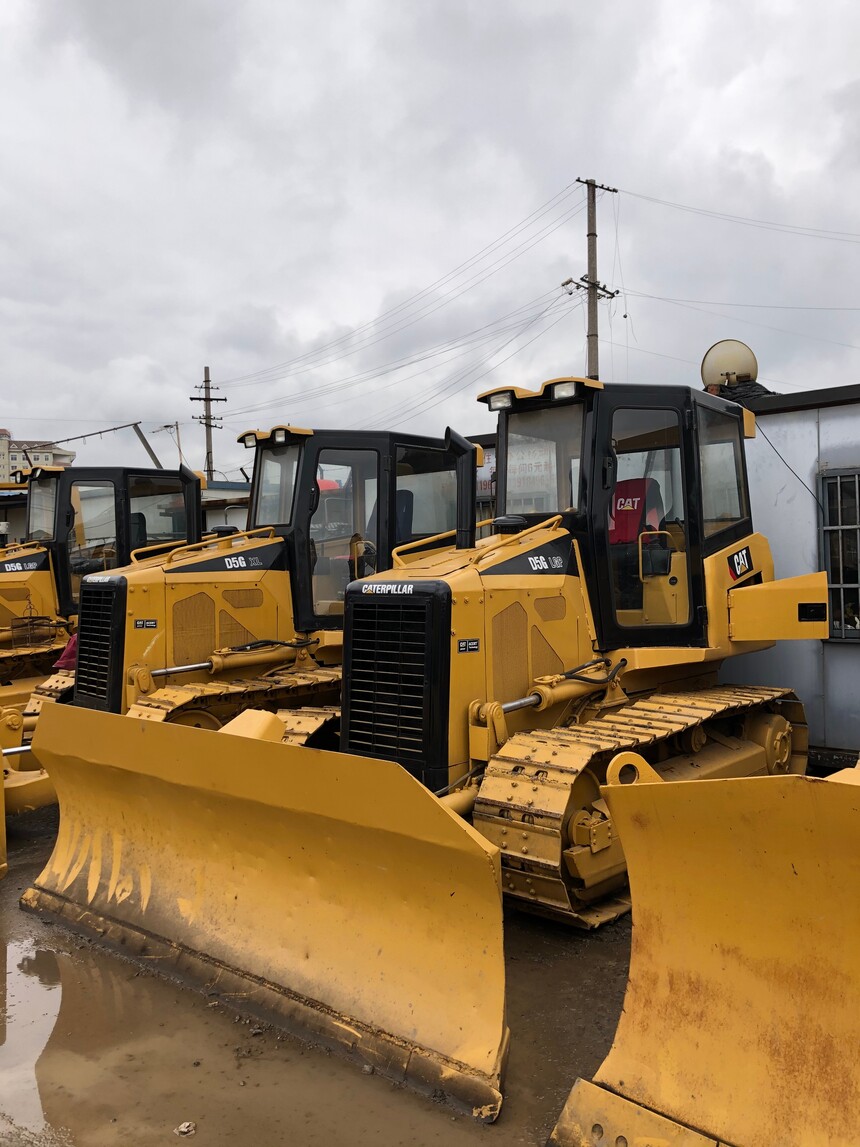

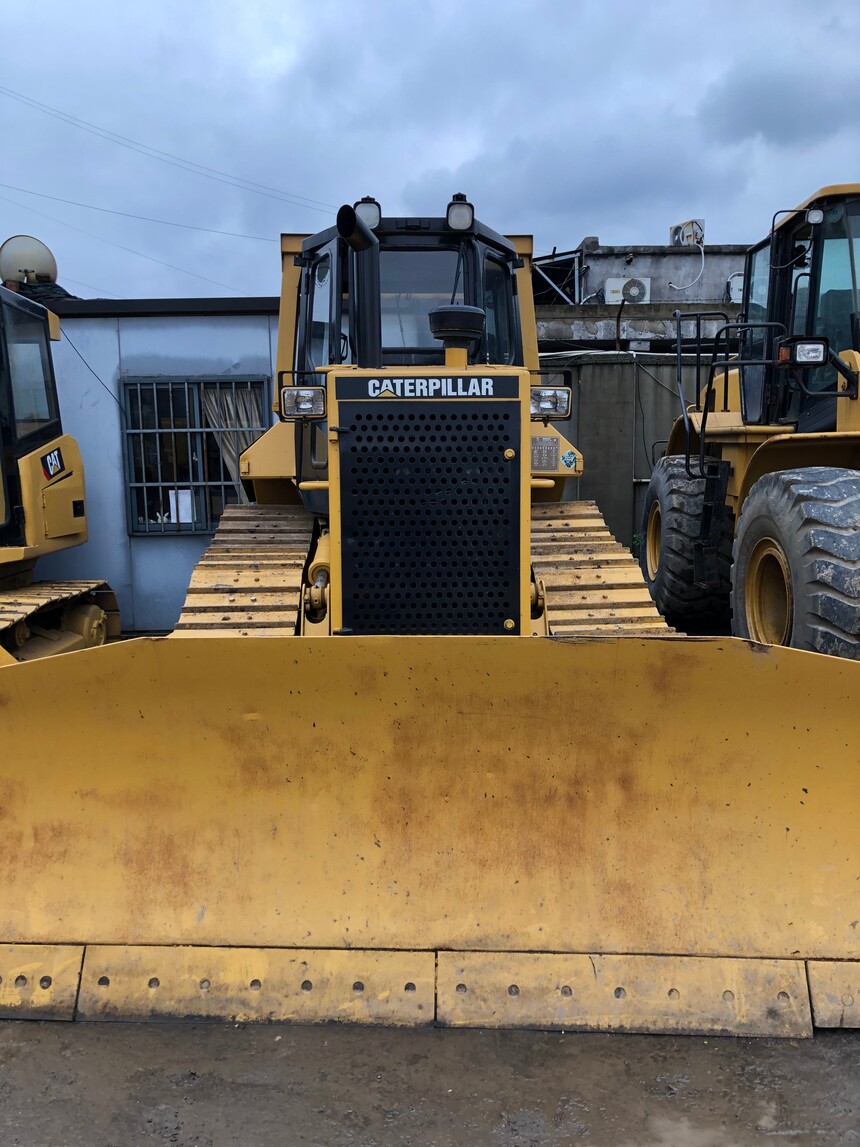

Caterpillar second -hand D5G dry terrain bulldozer

Caterpillar second -hand D5G dry terrain bulldozer

Caterpillar CAT®D5G Track-Type Tractor Specifications

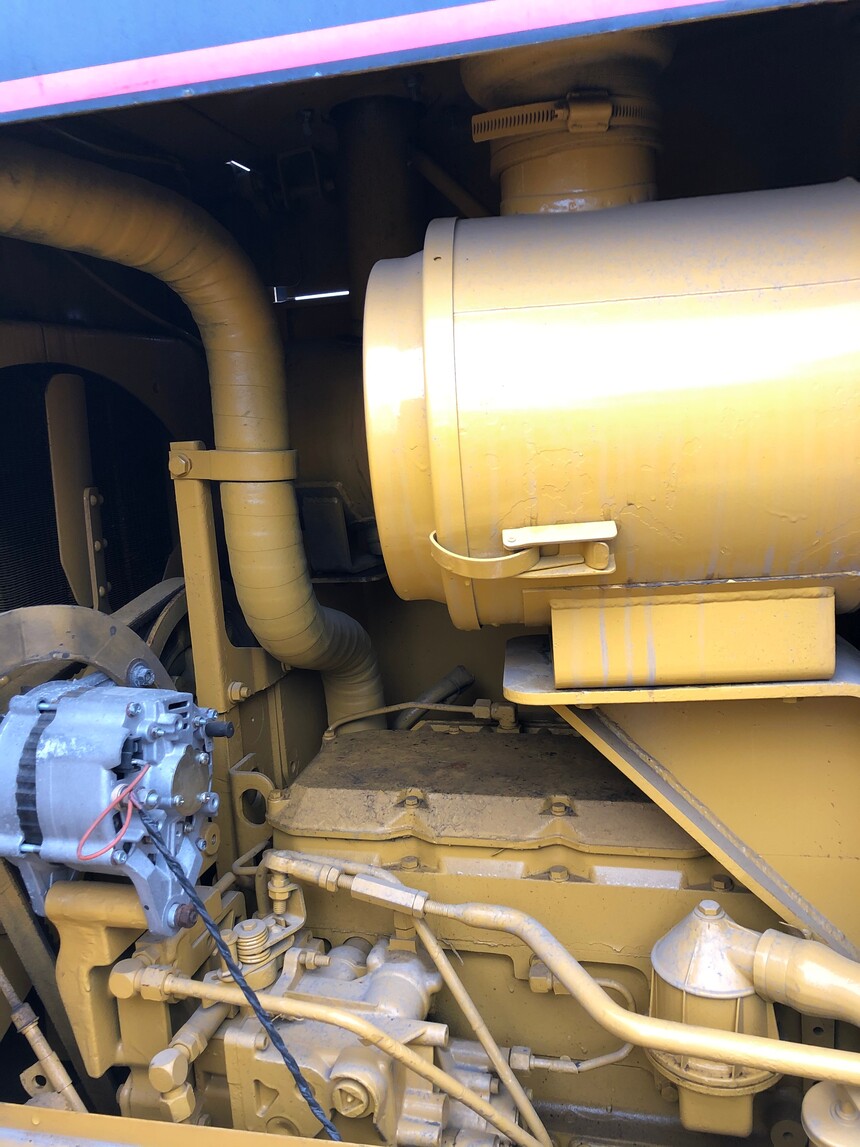

engine

Engine Model Cat C4.4 ACERT

Net power 71.6 kW

Displacement 4.4 l

Bore size 105.0 mm

Stroke 127.0 mm

NOTICE Engine meets Tier 3/Stage IIIA equivalent emissions standards.

Net power rating at 2200 rpm – ISO 9249/EEC 80/1269 71.6 kW

Net power rating at 2200 rpm – SAE J1349 71.6 kW

gearbox

drive pump 1

Track Motor 2

Maximum travel speed - 9.0 km/h forward

Maximum travel speed - reverse 10.0 km/h

weight

Working weight - XL 9110.0 kg

Operating Weight - LGP 9418.0 kg

Maintenance and filling capacity

Cooling system 22.4 l

Transmission/hydraulic tank 59.5 l

Crankcase and filter 11.0 l

Fuel tank 195.0 l

Ground Pressure - LGP 31.1 kPa

Ground Pressure - XL 38.6 kPa

Track shoe width – LGP 660.0 mm

Track shoe width – XL 510.0 mm

Ground Track Length - LGP 2310.0 mm

Ground Track Length - XL 2310.0 mm

Ground Area – LGP 30492.0 cm2

Ground Area – XL 23562.0 cm2

size

Track Gauge – LGP 1750.0 mm

Track Gauge – XL 1600.0 mm

Base Dozer Length (without blade) - LGP 3265.0 mm

Base Dozer Length (without blade) - XL 3265.0 mm

Overall length (with blade) – LGP 4309.0 mm

Overall length (with blade) – XL 4309.0 mm

Dozer Width (Standard Shoe, Without Blade) - LGP 2410.0 mm

Dozer Width (Standard Shoe, Without Blade) - XL 2110.0 mm

Dozer Height – LGP 2769.0 mm

Dozer Height – XL 2769.0 mm

Ground Clearance – LGP 332.0 mm

Ground Clearance – XL 332.0 mm

Hydraulic Controls

Pump output 68.0 l/min

Safety valve setting 48500.0 kPa

Number of racks 3

Height 165.0 mm

Overall width 741.0 mm

Weight 610.0 kg

The maximum extension distance on the ground is 555.0 mm

Maximum excavation depth 337.5 mm

Maximum ground clearance under tooth tip 448.0 mm

For 80 years since Caterpillar founded, Caterpillar has grown into the world's largest construction machinery and mining equipment, diesel and natural gas engines, and industrial gas turbines. Caterpillar cooperated with global agents to promote positive and sustainable changes in various continents. Caterpillar provides products, services and technologies in the following three major business areas. Machinery, engine and financing products. As a global leader of multiple technologies, Caterpillar promised to pursue excellence in all aspects. Caterpillar was deeply proud of becoming a global infrastructure and promoting the progress of millions of people around the world.

Caterpillar D5G bulldozer introduction

Caterpillar D5G bulldozers are driven by tractors and have a wide and blunt shovel to remove land, road structures or similar jobs.
