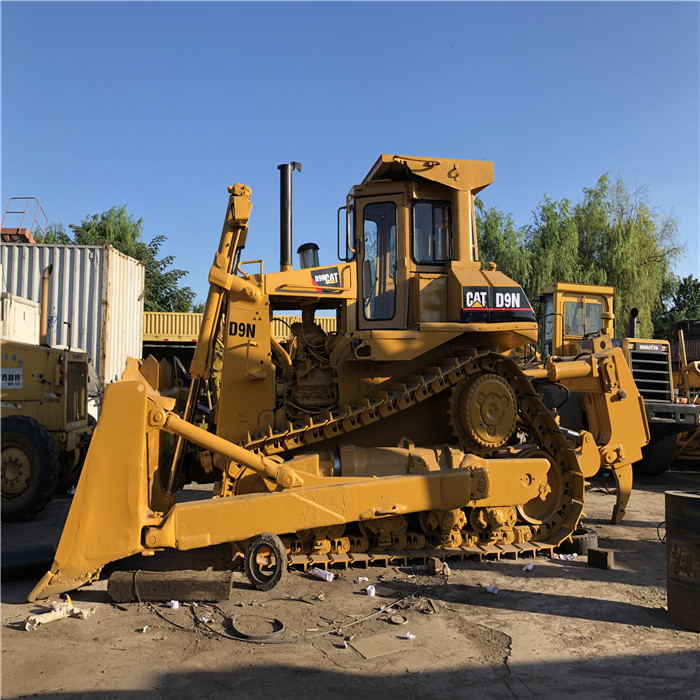

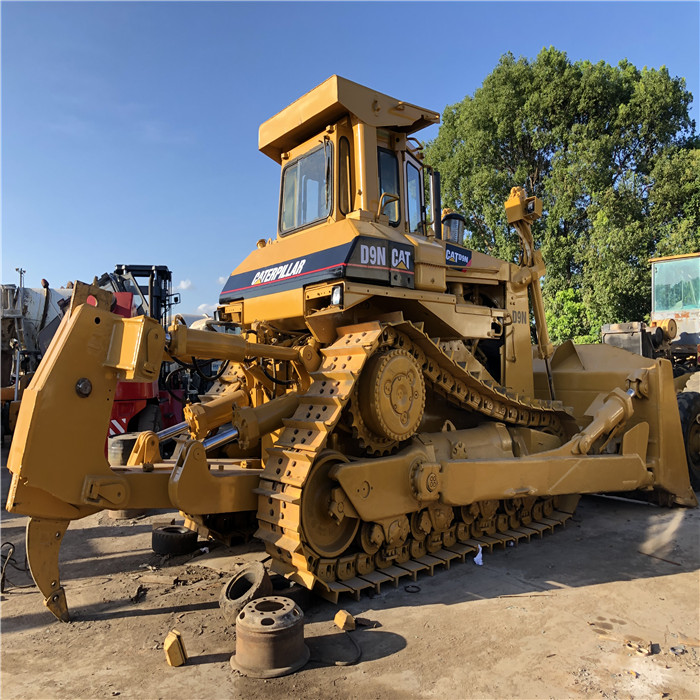

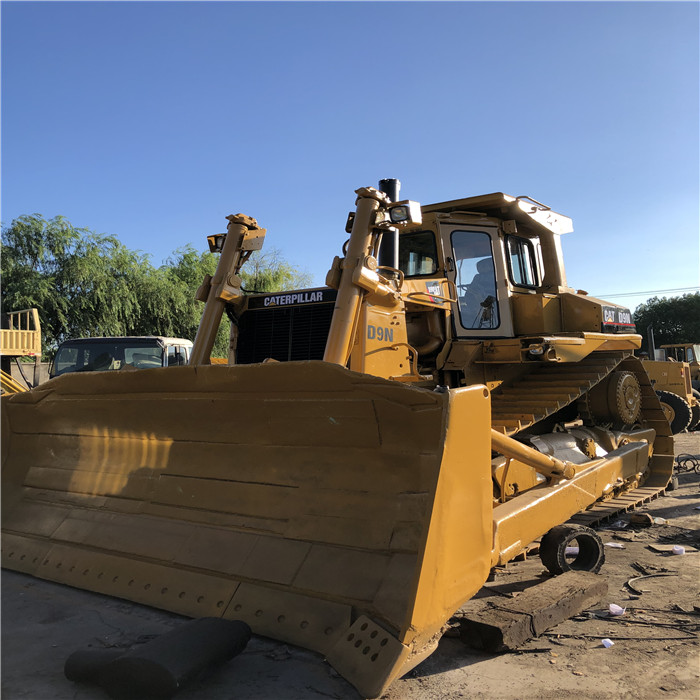

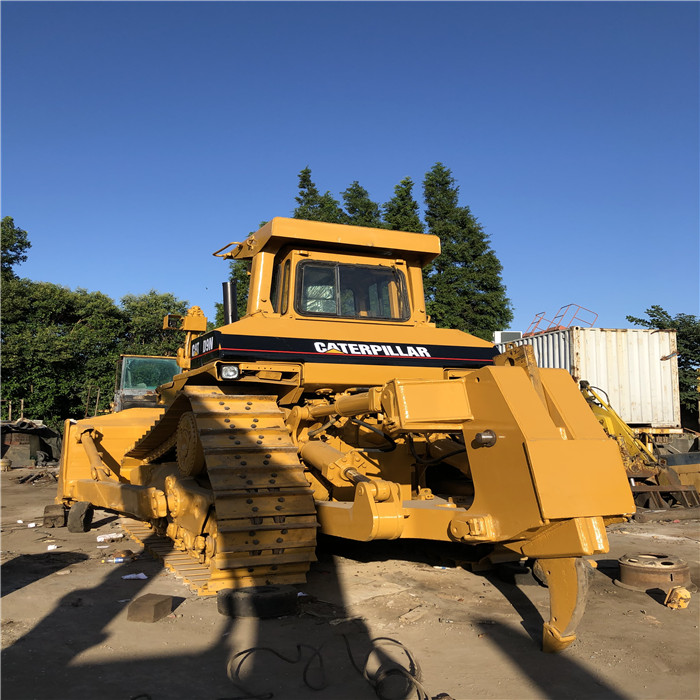

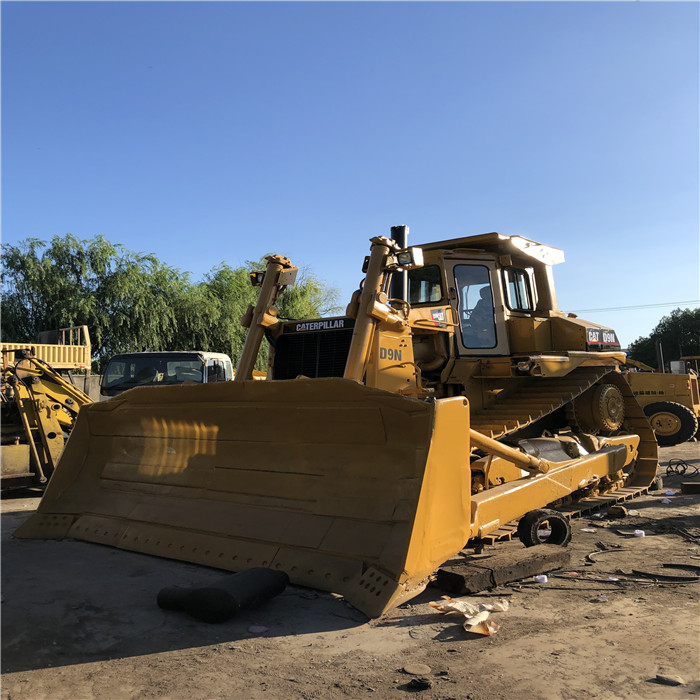

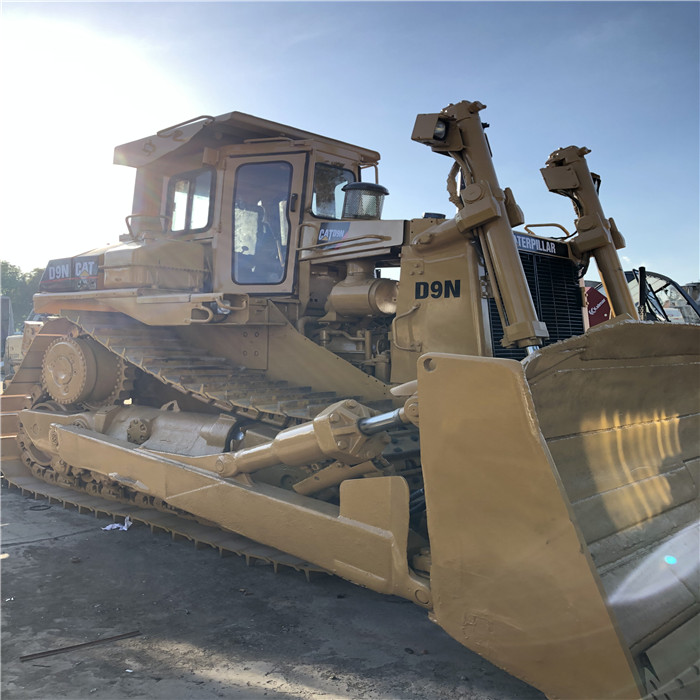

Caterpillar second -hand D9N dry terrain bulldozer for sale

Caterpillar second -hand D9N dry terrain bulldozer for sale

Technical parameters

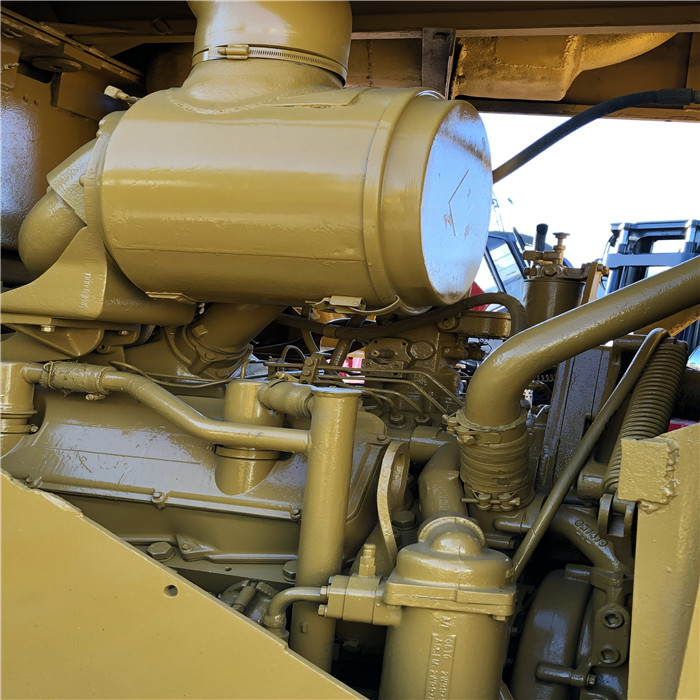

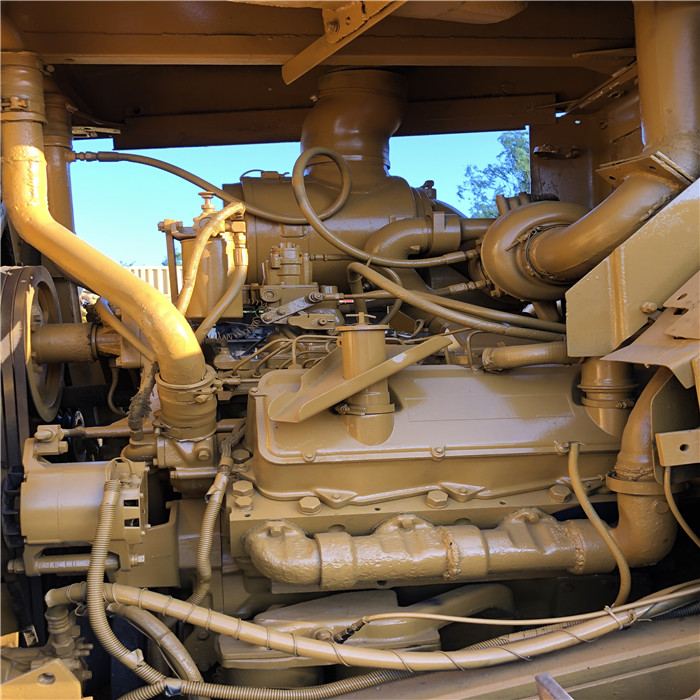

engine

Engine model CAT® C18 Acert ™

Flying wheel power 306.0 kw

Line diameter 145.0 mm

Chongcheng 183.0 mm

Displacement 18.1 L

Note (1) * does not include all fan loss.

Note (3) Names of net power refers to the power at the flywheel at the flywheel when the engine is equipped with a fan, air filter, muffler, and AC generator at the maximum speed.

Note (4) When the altitude is lower than 2286 m (7500 '), it can maintain full power. Provide high altitude workflow to use it when the altitude is higher than 2286 m (7500 ').

Net Power SAE J1349/ISO 9249 306.0 KW

Engine net power -SAE J1349/ISO 9249 306.0 kW

Engine power -ISO 14396 329.0 kW

The total power of the engine -SAE J1995* 334.0 kW

Emissions EPA Tier 2/EU Stage II equivalent emission standard and American EPA Tier 3/EU IIIA equivalent emission standard

weight

Work weight 47872.0 kg

Shipping weight 35746.0 kg

Gearbox

Promotion 1 gear 3.9 km/h

Get forward 2 gear 6.8 km/h

Get forward 3 gear 11.7 km/h

Reversing 1 gear 4.7 km/h

Reversing 2 gear 8.4 km/h

Reversing 3 gear 14.3 km/h

Get forward 1 -Give the lever tension 716500.0 N

Get forward 2 gear -led rods 400500.0 n

Get forward 3 -Give the lever 222500.0 N

Hydraulic control device

Pump type flywheel transmission piston pump pump

Pump displacement (steering) 387.0 l/min

Pump displacement (worker) 226.0 L/min

Tilled oil cylinder rod side flow 140.0 L/min

The end of the tilt oil cylinder head is 188.0 L/min

Push the shovel safety valve setting 26200.0 kPa

Settings of tilt oil cylinder safety valve setting 19300.0 kPa

Lake (upgrade) safety valve settings 26200.0 kPa

Settings of the splitter (cutting angle) safety valve setting 26200.0 kPa

Turn to 40500.0 kPa

The fuel tank capacity 89.0 L

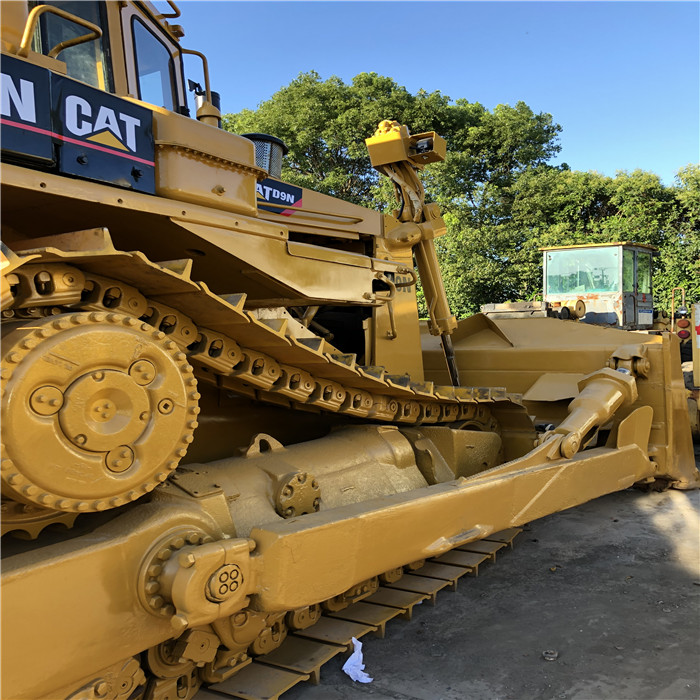

Chassis system

Track board type extreme operation

The width of the trackboard is 610.0 mm

Number of track boards per side 43

Grabbing teeth height 84.0 mm

Slotning 240.0 mm

Ground contact area 4.24 m2

The number of heavy wheels per side of the rack branch 8

The number of link wheels is 1 on each side (optional)

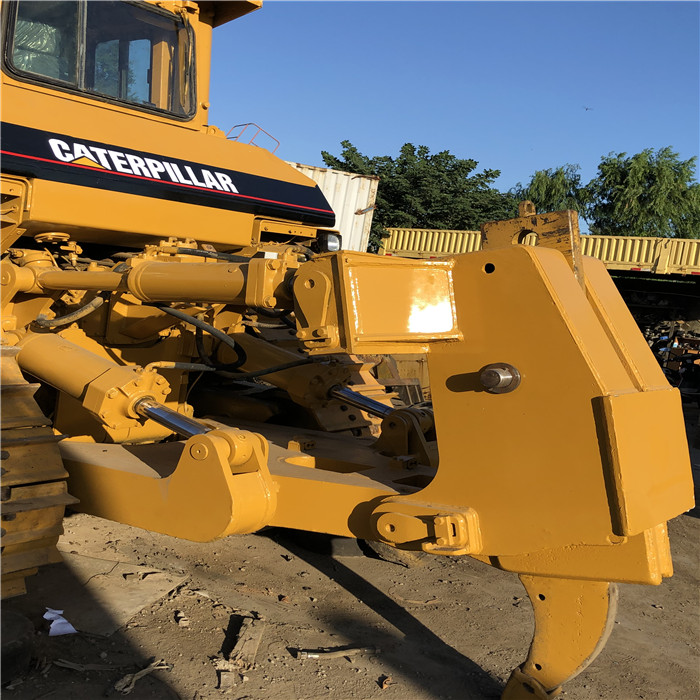

Cracks -adjustable parallel connecting rod single tooth poles, standard/deep cracks

Note (2) The weight of the single tooth rod crack configuration assembly includes the extensor.

Tooth pole hole number 3

Digging 332 kn/331 kn (74,637 LBF/74,412 LBF)

The maximum gap (under the tip of the teeth, fixing the sales of the bottom hole) 882 mm/817 mm (34.7 "/32.2")

Maximum penetration (straight tooth) 158 KN/172 KN (35520 LBF/38667 LBF)

Maximum penetration depth (standard tooth tip) 1231 mm/1727 mm (48.5 "/68"))

The total width of the beam is not applicable

Weight (with a tooth pole) 4293 kg/4420 kg (9464 LB/9744 LB)

winch

Towel model PA140VS

Weight* 1790.0 kg

Machine oil capacity 15.0 L

The increase of the longitudation of the soil is 557.0 mm

Steel wheel width 320.0 mm

Recommended steel cable diameter 28.0 mm

Selected steel cable diameter 32.0 mm

Maximum steel wheel capacity -recommended steel cable length 78.0 m

Maximum steel wheel capacity -selected steel cable length 62.0 m

Steel Cable Holes Ring specification -outer diameter 60.0 mm

Steel Cable Holes Ring specification -length 70.0 mm

standard

FOPS anti -landing protection structure (Falling Object Protective Structure) meets the ISO 3449: 2005 II standard.

ROPS Caterpillar provided ROPS (Rollover Protective Structure) provided by the machine (Rollover Protective Structure), rolling protection structure) conforms to the ROPS standard SAE J1040 May94, ISO 3471-1994.

Noise (1) For the cabin provided by CaterPillar, when the correct installation, maintenance and door and window are closed, the operator noise exposure (equivalent pressure level of the equivalent sound pressure level of an equivalent sound -level pressure level specified in ANSI/SAE J1166 Oct98 ) It is 77 db (a).

Noise (2) According to the test program specified by the SAE J88 APR95, the standard machine runs at 15 m (49 ') at a mid -range operation, and the external sound pressure level is 87 db (a).

Size (approximate value)

Scooter length 3470.0 mm

Track spacing 2250.0 mm

Width without the axis (standard trackboard) 2880.0 mm

Basic configuration of the total length of the bulldozer 4910.0 mm

Width (outside the ear shaft) 3300.0 mm

Basic configuration of the bosses with a led lever 5180.0 mm

Basic configuration of twisted bulldes 5545.0 mm

Total length (SU shovel/SS cracks) 8230.0 mm

Direction rod height (U -shaped clip center)* 763.0 mm

Ground clearance* 596.0 mm

The length when assembling SU shovel ** 6880.0 mm

The length of the U shovel is 6967.0 mm

The length of the single tooth rod crack is 6529.0 mm

The length of the multi -tooth rod crack is 6538.0 mm

Height (FOPS cab)* 3820.0 mm

Height (ROPS/Top)* 4000.0 mm

Height (top of the exhaust pipe)* 3919.0 mm

Maintenance and injecting capacity

Fuel tank 889.0 L

Cooling system 101.0 L

Engine crankshaft box* 34.0 L

Power Transmission Department 164.0 L

Final drive (each) 15.0 L

Round rack (each) 45.0 L

Hydrop room 30.0 L

Pay attention to * Piece oil filter.

Hydraulic box oil (only) 89.0 L

Lake -adjustable parallel link + multi -teeth pole

Total work weight*(including SU shovel and cracks) 47872.0 kg

Digging (a multi -toothed soil cracking device with a fighting teeth) 361.0 kn

The maximum gap (under the tip of the teeth, fixing the solder at the bottom hole) 879.0 mm

Maximum penetration (straight tooth) 154.0 kn

Maximum penetration depth (standard tooth tip) 798.0 mm

The total width of the beam 1330.0 mm

Weight (with a tooth pole) 4153.0 kg

Shovel -9SU

Ground clearance 596.0 mm

Shovel -9U

Capacity (SAE J1265) 13.5 m3

Width (outer edge of the end) 4310.0 mm

Total work weight ** (including shovel and single tooth pole cracks) 47872.0 kg

Digging depth of 606.0 mm

Maximum tilt 940.0 mm

Weight*(excluding hydraulic control device) 6863.0 kg

Height 1934.0 mm
