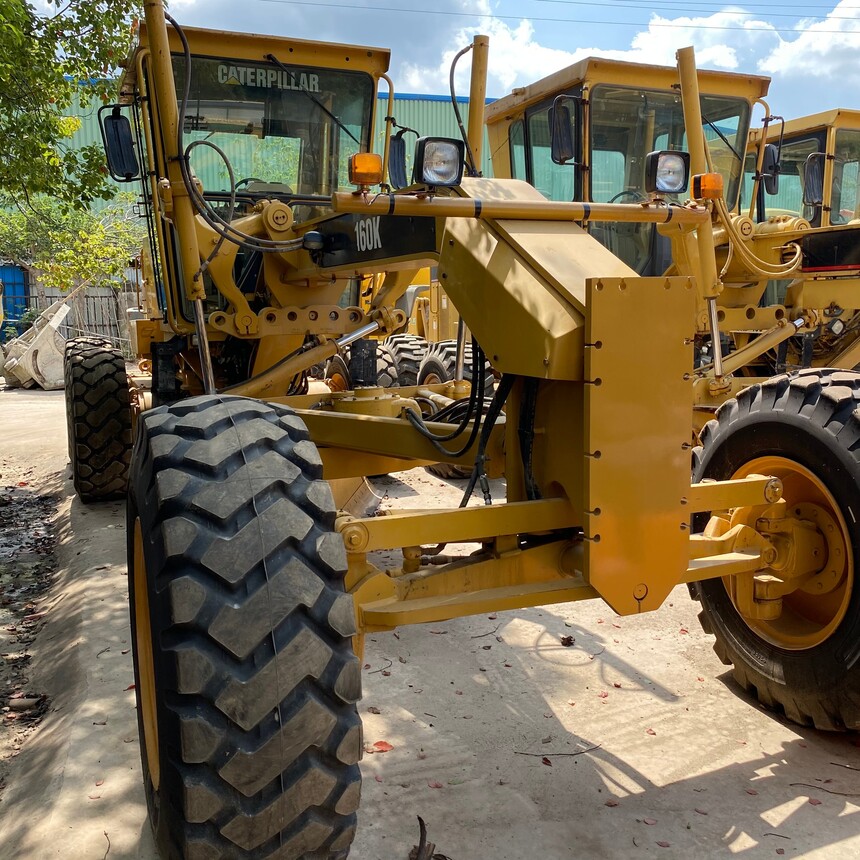

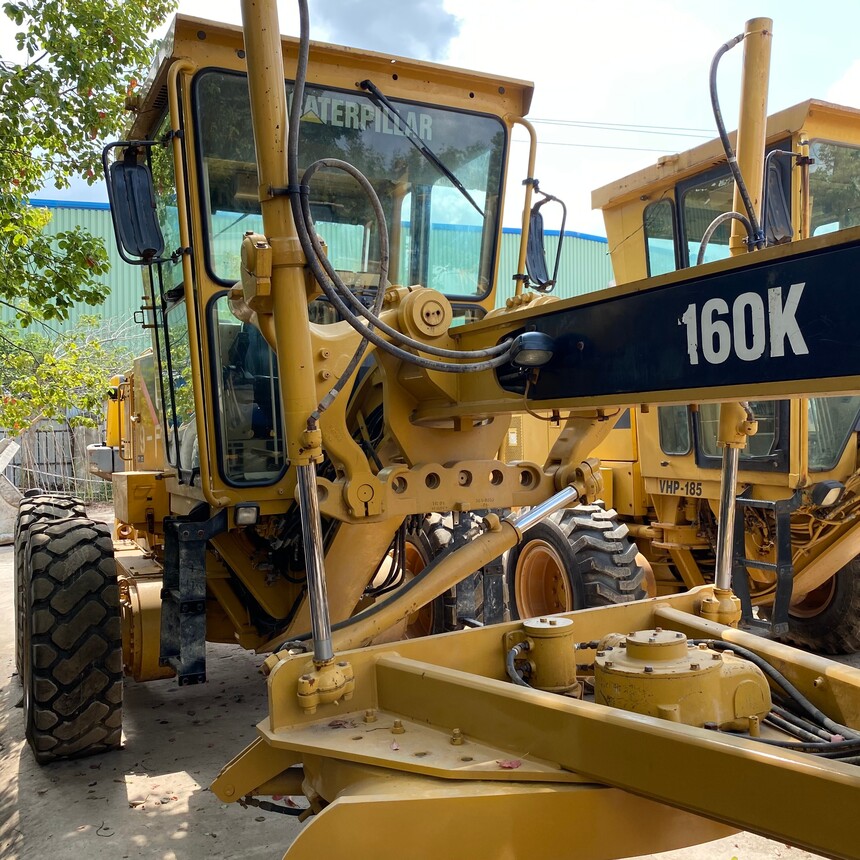

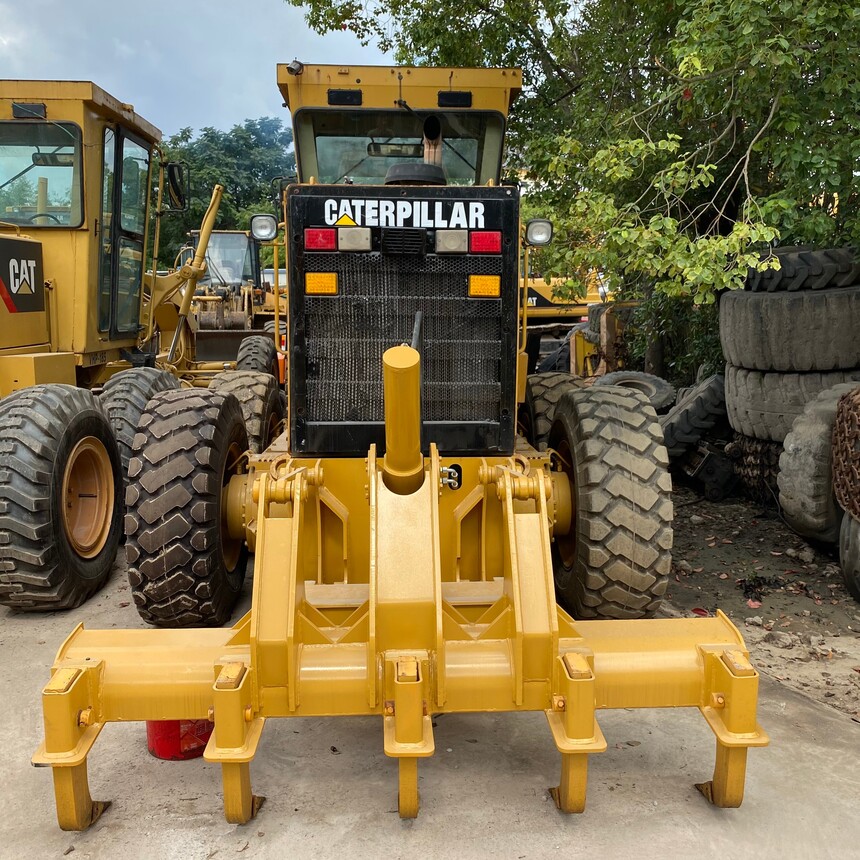

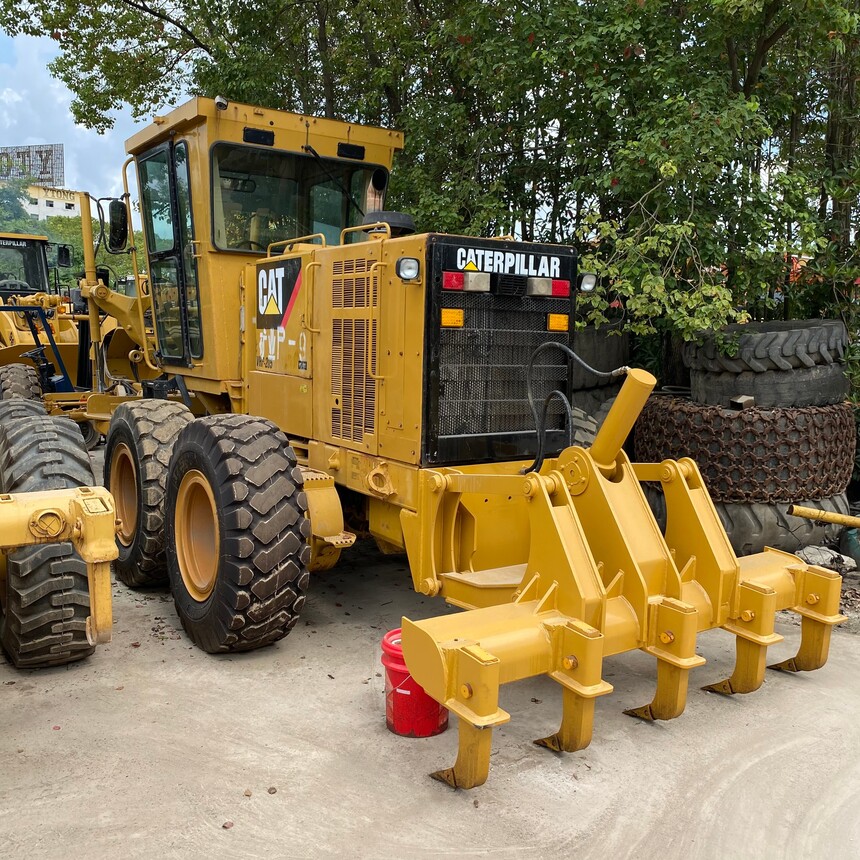

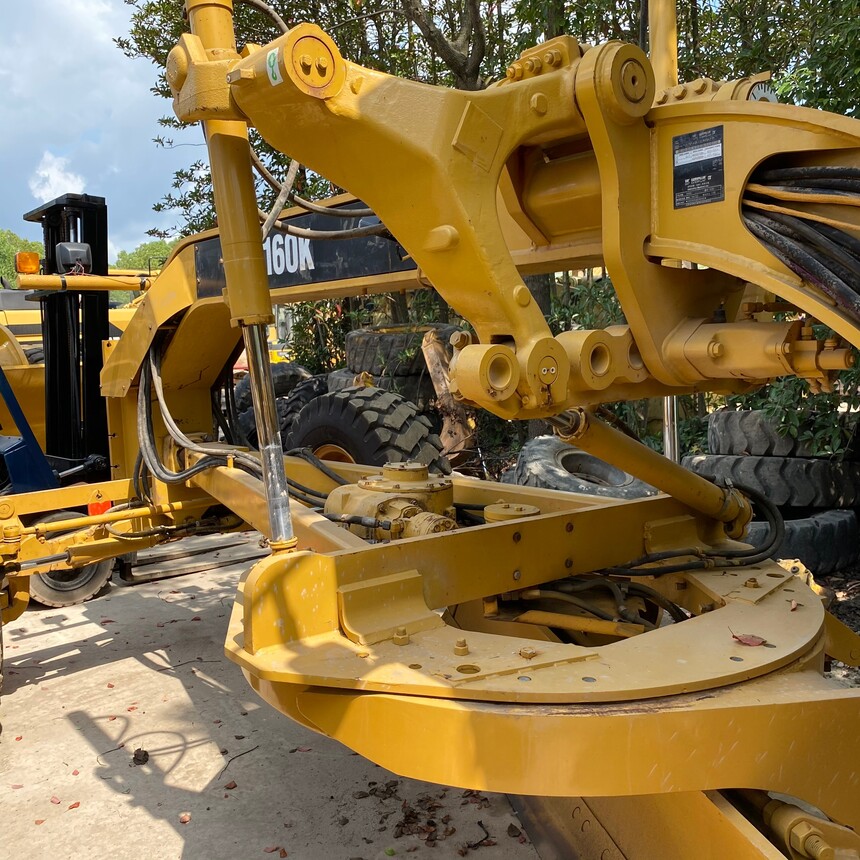

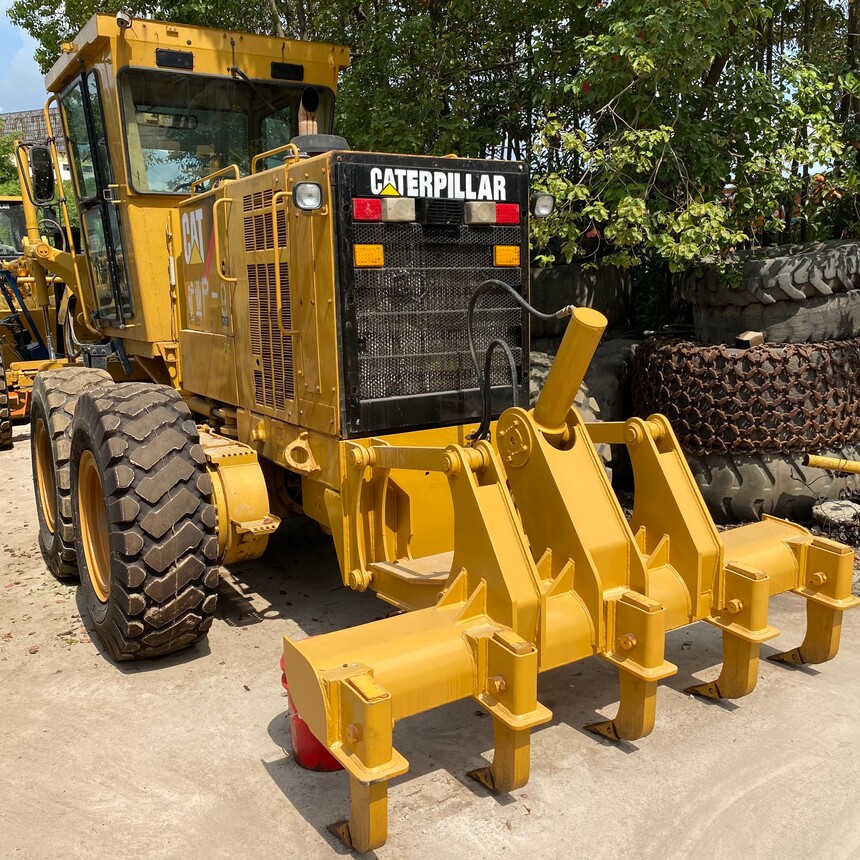

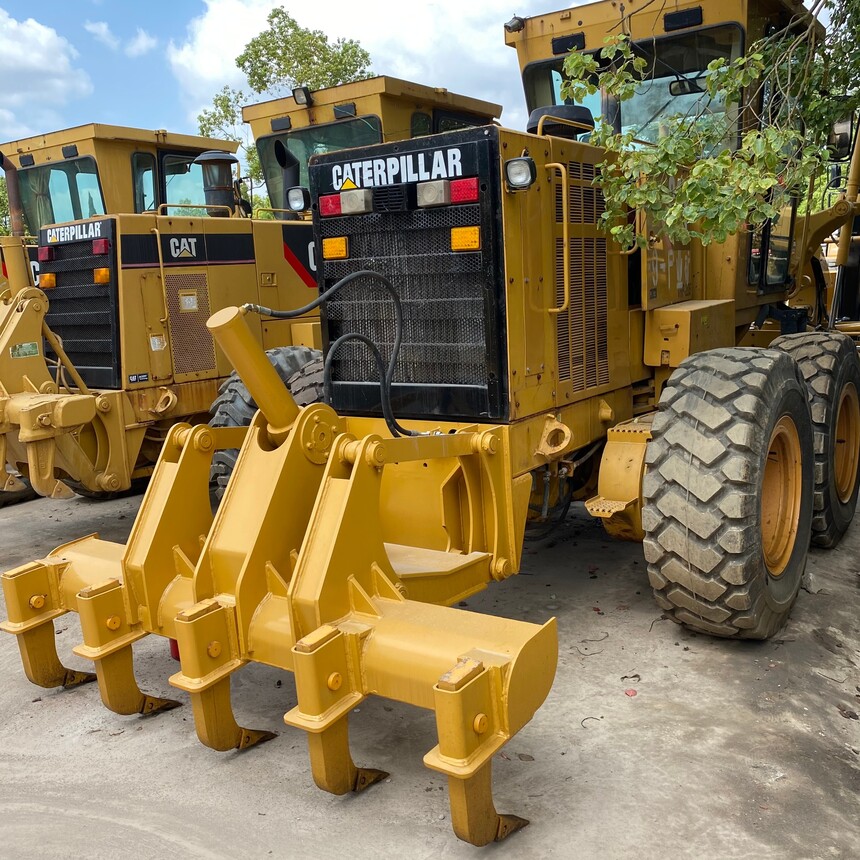

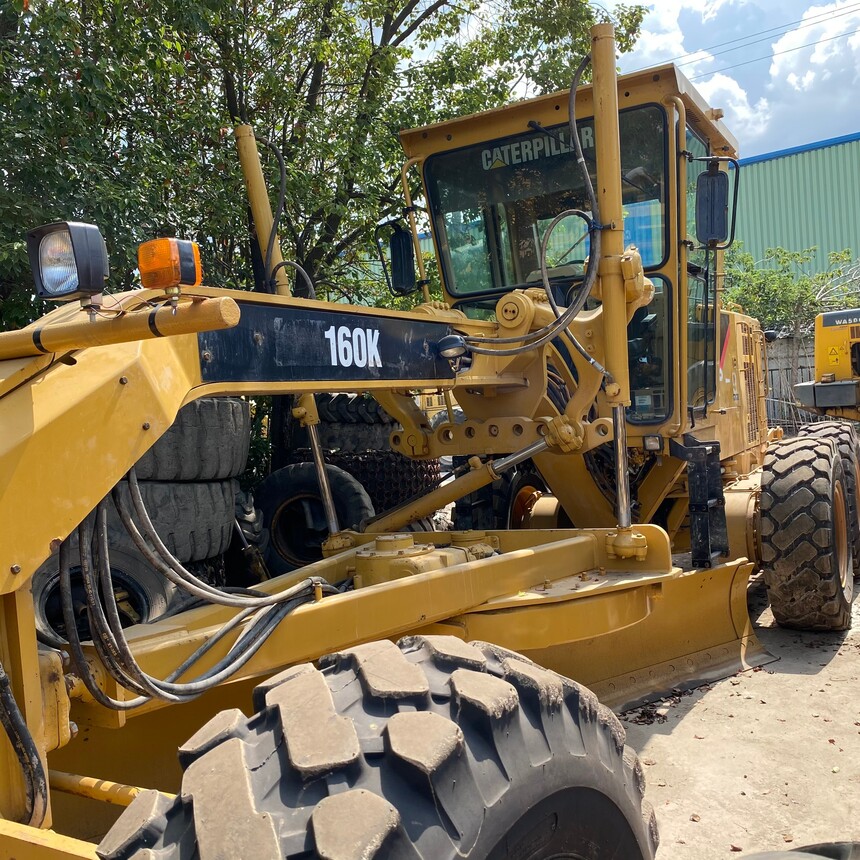

Caterpillar 160K model grader for sale

Caterpillar 160K model grader for sale

Caterpillar CAT®160K flat floor technical parameters

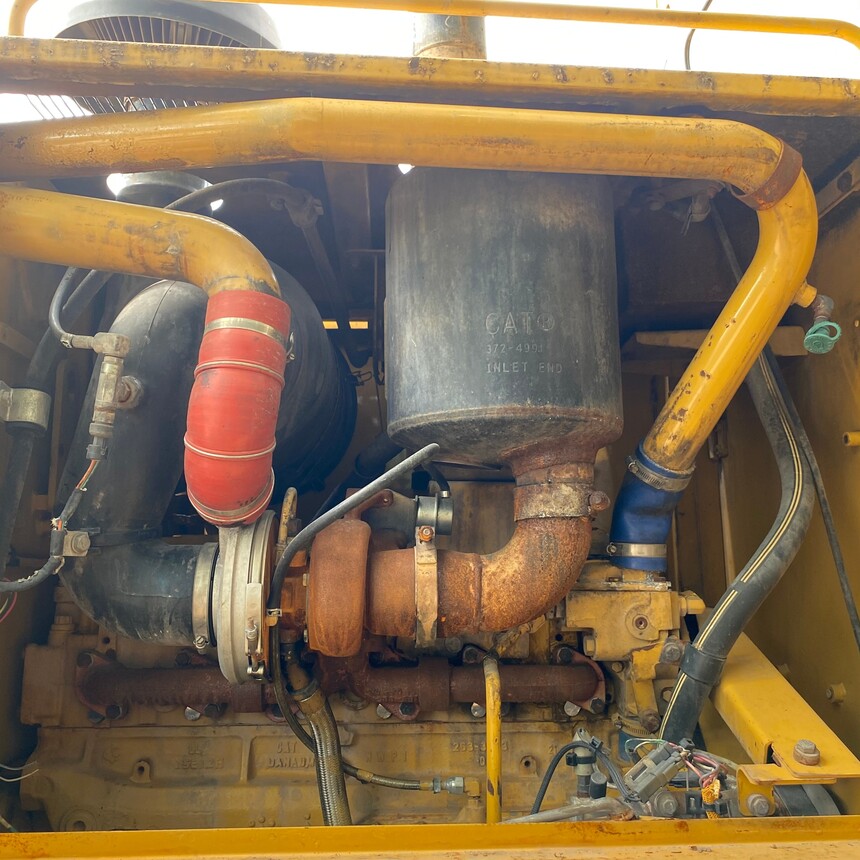

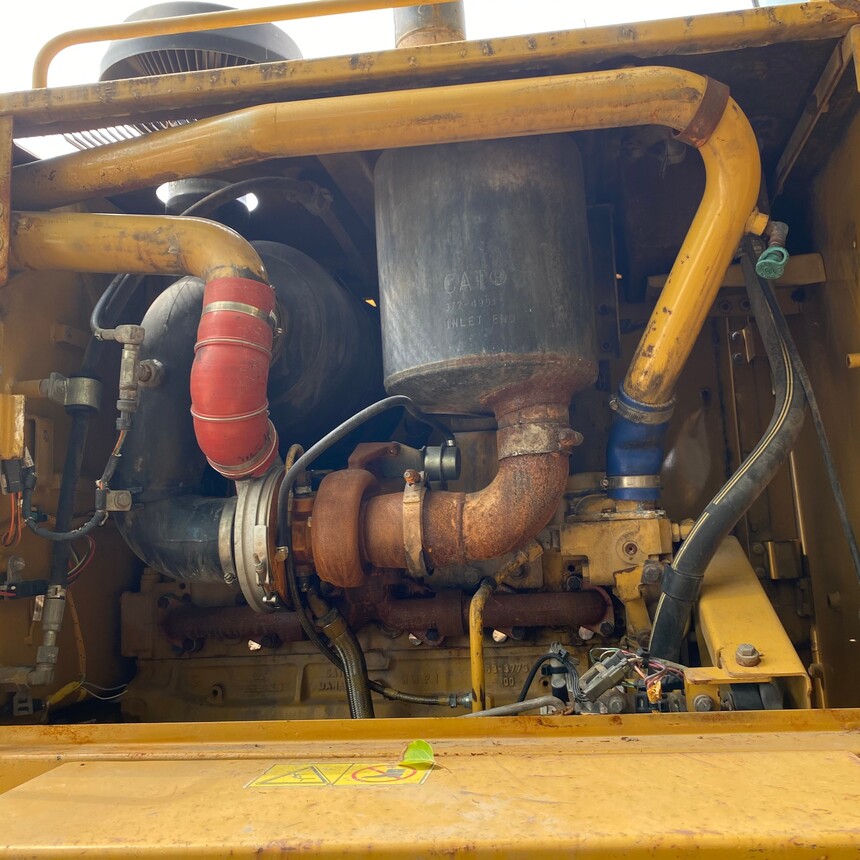

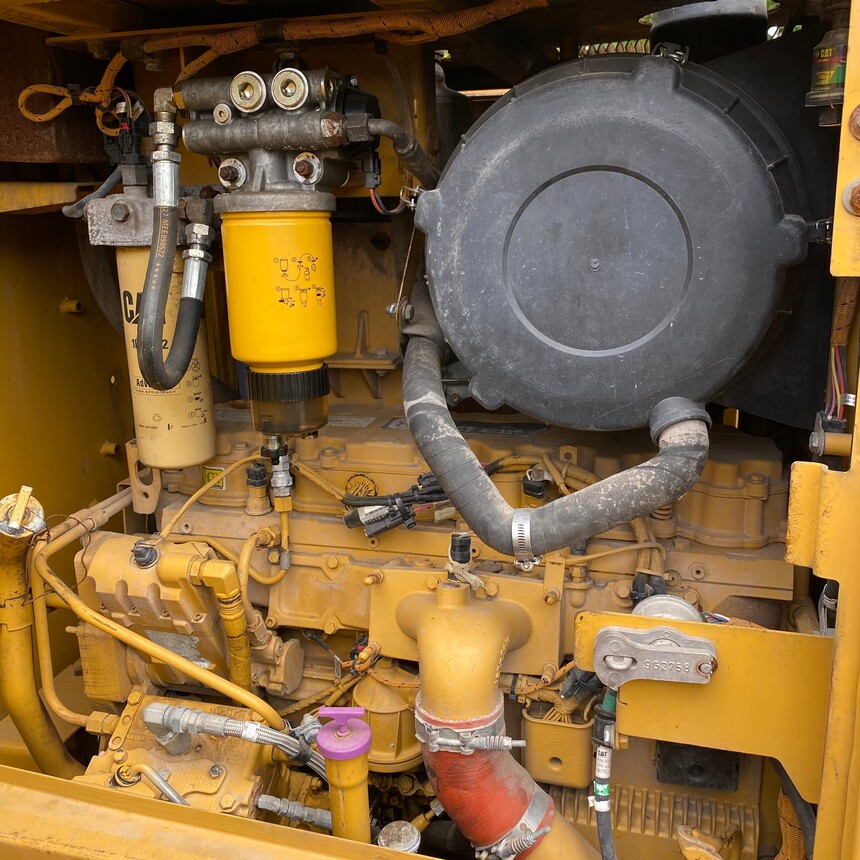

engine

Basic power (1 gear) -We net power 139.0 kW

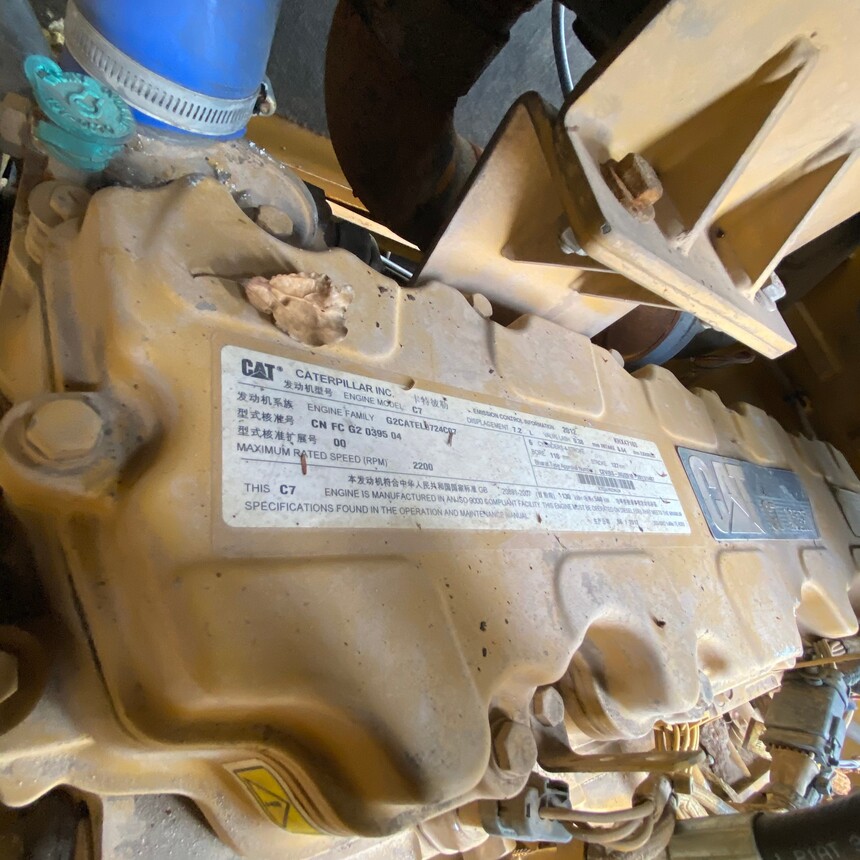

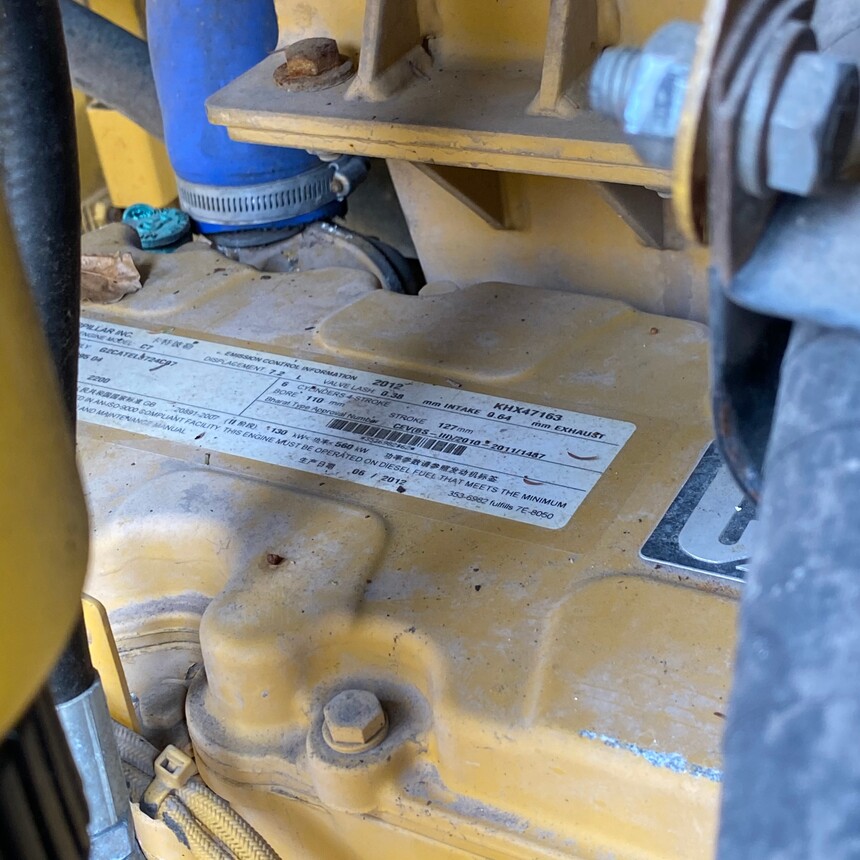

Engine model Cat C7 Acert

Displacement 7.2 L

Line diameter 105.0 mm

Chongcheng 127.0 mm

High -temperature environment work capacity 50.0 ° C

VHP range-net power 139-154 KW (186-206 HP)

Power reduction altitude 3048.0 m

Basic power -net power 139.0 kW

Remarks (1) The net power is tested in accordance with the ISO 9249, SAE J1349, and EEC 80/1269 standards that are effective during manufacturing.

Remarks (2) Names of net power refers to the power measured at the flywheel when the engine with a fan, air filter, muffler, and AC generator at the rated speed is 2000 RPM.

Remarks (3) The maximum torque is measured at 4-8 gear and the speed is 1000 RPM.

Torque reserves 46%

Maximum torque 1076.0 n · m

Cylinder quantity 6

The speed at the rated power is 2000.0 rpm/minute

High temperature environment -fan speed -maximum 1560.0 rpm/minute

Scraper

Shoot width 4.3 m

Arc diameter 413.0 mm

Tooth and throat clearance 90.0 mm

Scraper plate -thickness 25.0 mm

Earth Board -height 686.0 mm

End blade -thickness 16.0 mm

End blade -width 152.0 mm

Shovel blade thickness 16.0 mm

Shooping blade width 203.0 mm

Shoot sword moving range

The length of the maximum shovel outside the tire -2261.0 mm on the right

The length of the maximum shovel outside the tire -2223.0 mm on the left

Move the sideways of the scraper plate -943.0 mm on the right

Move the sideways of the scrape -left 851.0 mm

Return to the center shift -728.0 mm on the right

Return to the center shift -left 752.0 mm

The maximum increase height above the ground is 452.0 mm

The maximum excavation depth 790.0 mm

Shojo Tumping range -40 ° forward

Skidine Tumping range -5 ° backwards

frame

Pre -axis -32 ° on the main side of each side

The front axis -wheel tilt -left/right 18 °

Rotal -outer diameter 1553.0 mm

weight

Total vehicle weight -typical configuration 17706.0 kg

Work weight -maximum -front axle 8005.0 kg

Work weight -maximum -rear axle 14865.0 kg

Work weight -maximum -total 22870.0 kg

Total vehicle weight -typical configuration -front axle 5136.0 kg

Total vehicle weight -typical configuration -total 17706.0 kg

Total vehicle weight -typical configuration -rear axle 12570.0 kg

Total vehicle weight -basic -front axle 4459.0 kg

Total vehicle weight -basic -total 15185.0 kg

Total vehicle weight -basic -rear axle 10726.0 kg

Remarks (1) Basic weights are calculated based on standard machine configuration, including 14.00-24 12PR (G-2) tires, SP wheels, full fuel tanks, coolant, lubricants, and 90 kg (198 LB) operators.

Remarks (2) The typical work weight is calculated based on the standard machine configuration, including the HVAC ROPS cab, 14.00-24 12PR (G-2) tires, MP wheels, cracks, pushing boards, gearboxes, full fuel tanks , Cooling, lubricant and 90 kg (198 LB) operation
