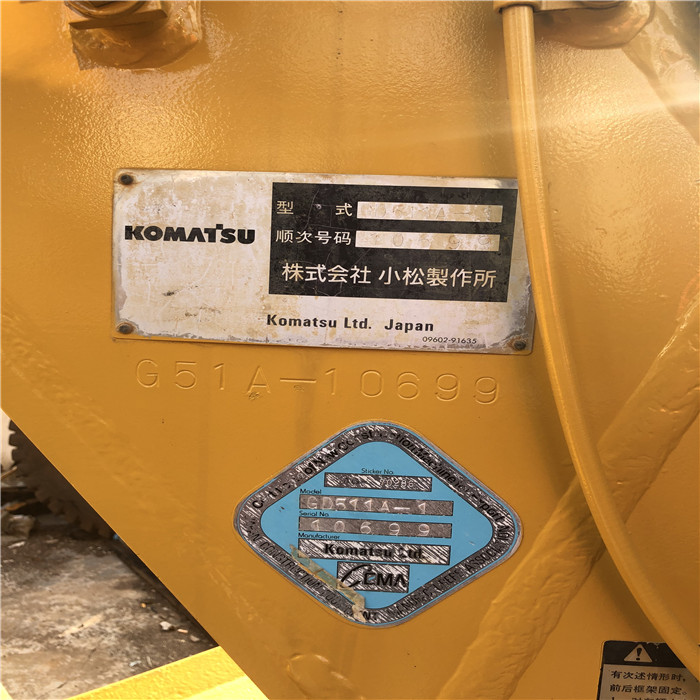

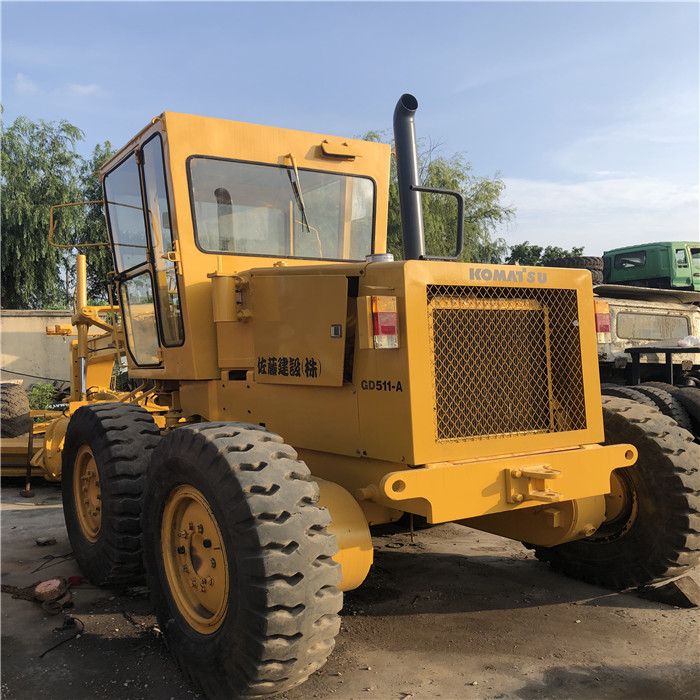

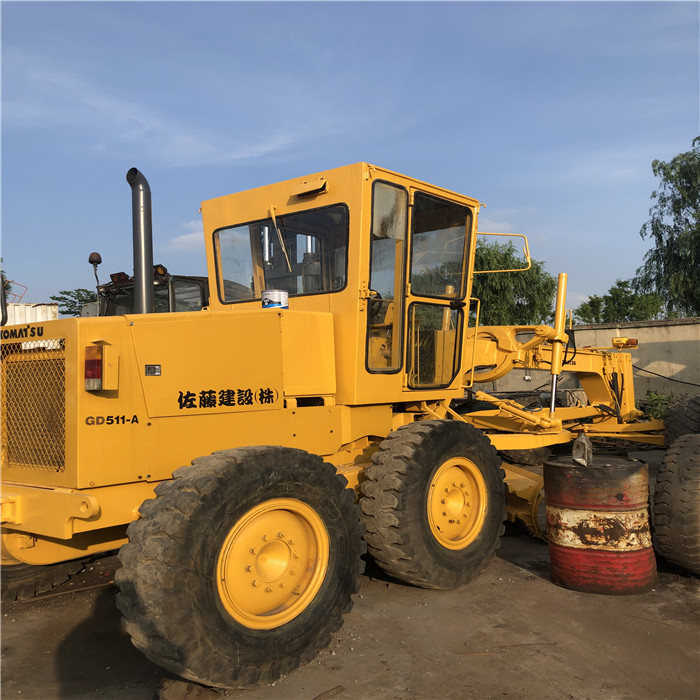

Original Japan komatsu GD511-A model grader flat machine

Original Japan komatsu GD511-A model grader flat machine

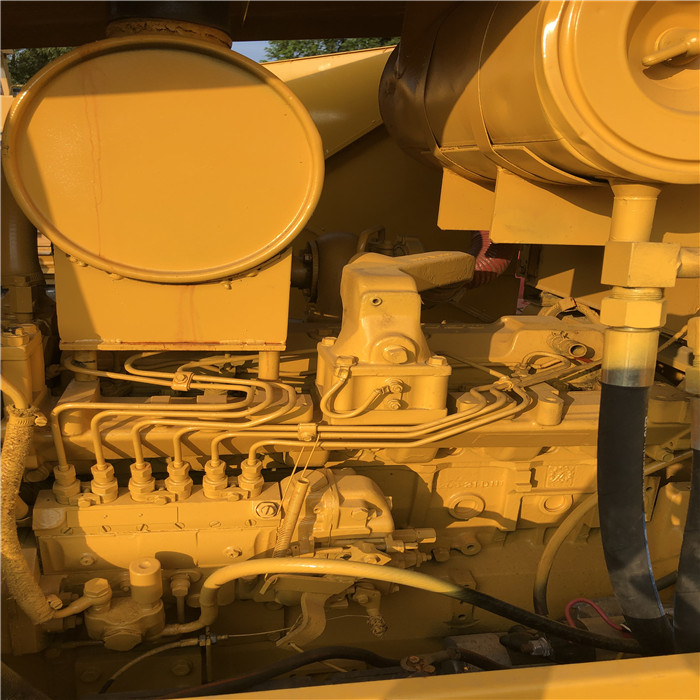

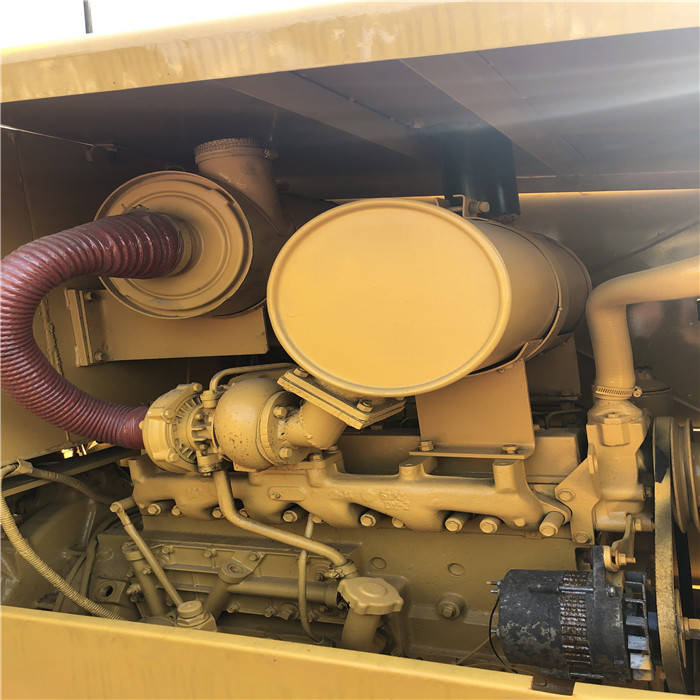

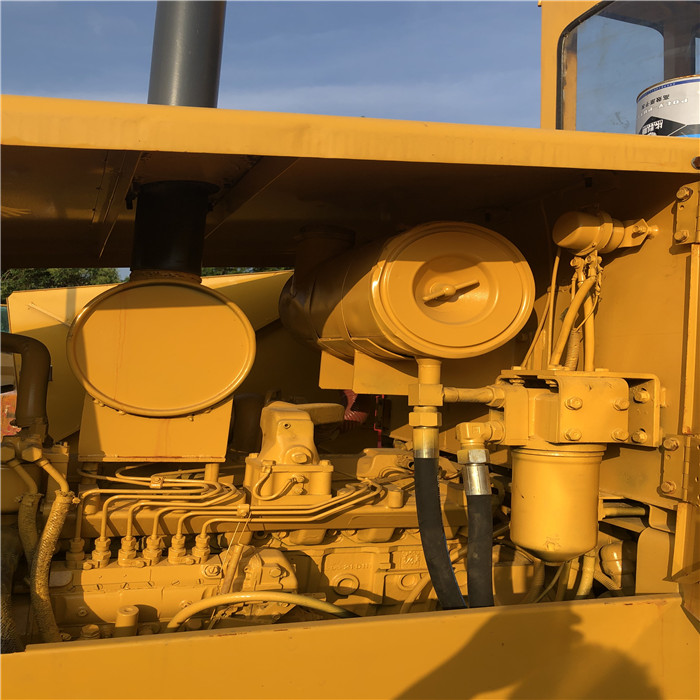

The engine model Komatsu S6D95i

Type 4 rushing range, water cooling, top -up valve

Inhalation method

Tank number 6

Line diameter X Chongchang MM 95X115

Pistons displacement, L 4.89

Power, KW 101kW@2900rpm

Full speed of speed regulator, mechanical

Fuel tank capacity L 227

The oil tank capacity L 9

Battery 2x12V/100AH

Start the motor 24V/5.5KW

AC generator 24V/25A

Forward speed KM/H i ii IV vi

3.4 6.1 10.7 14.1 25.5 44.6

Retry speed km/h i iii III IV vi

4.2 7.5 13.1 17.3 31.1 54.5

Maximum Destroyer KG 6140

The final transmission of the spiral cone gear, a single -level deceleration. Roller Chain Candidate Biography

Move, connect the corner of the connected transmission box 13 °

Laqiao Qianqian Bridge Central Slot clearance 610mm

Total corner 32 °

The front wheel hydraulic tilt per side 20

The rear bridge full -floating rear bridge, hot treatment of forging steel manufacturing.

The front and rear wheels of the wheels 13.00-24-8PR (G-2)

Inflatable pressure KPA 177

Turn to the front wheels to turn left and right 49 °

The frame steering angle of the frame is 27 °

Minimum turning radius mm 6600

Driving brake hydraulic driving internal expansion brake acts on four rear wheels

Parking brake mechanical internal expansion brake acts on the transmission output shaft

Hydraulic fuel tank capacity, L 30

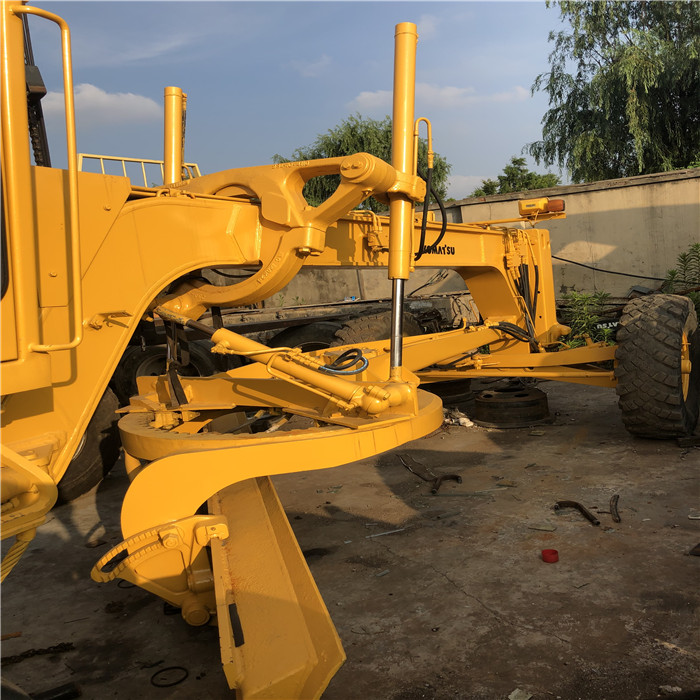

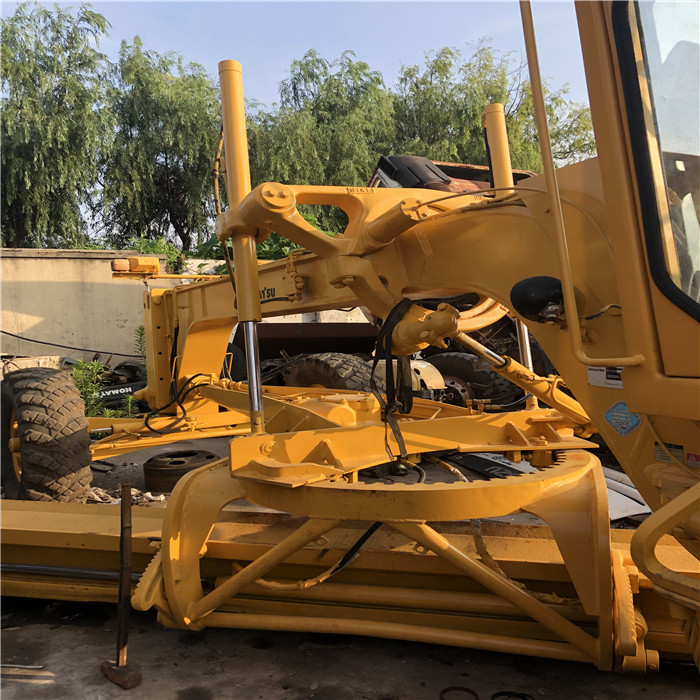

The inner tooth type of the knife is rotated, rotated at 360 °, and the hydraulic operation

Drawing size (long x high x thick) mm 3710x645x16

Kn 54.8

Maximum height MM 450

Maximum shovel depth mm 535

Template sidelines mm left: 785 Right: 925

The maximum limit of the shovel to the shoulder MM Left: 2030 Right: 2030

Maximum shovel corner 90 °

Cutting angle 29 ° ~ 77 °

The front wheel weight KG 3130

The rear wheel weight KG 7670

Total weight KG 10800

Our company mainly produces second-hand excavators, pavers, bulldozers, road rollers, graders, cranes, forklifts, Rotate drilling, sprinkle water truck, mixing truck，etc .if you have any needs in this regard, please feel free to inquire
