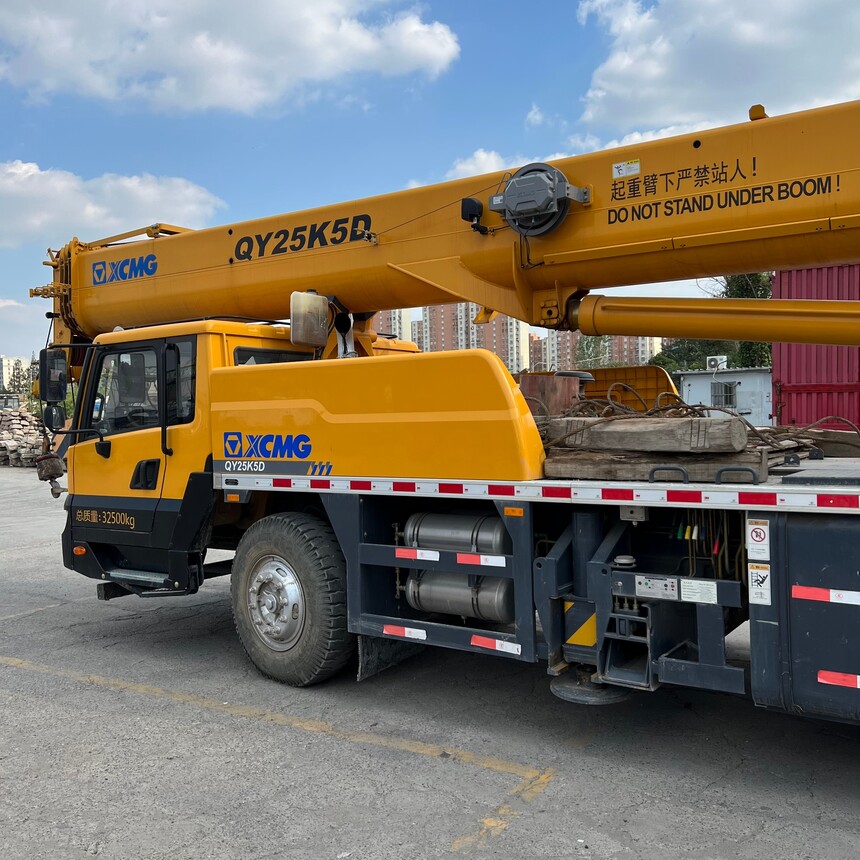

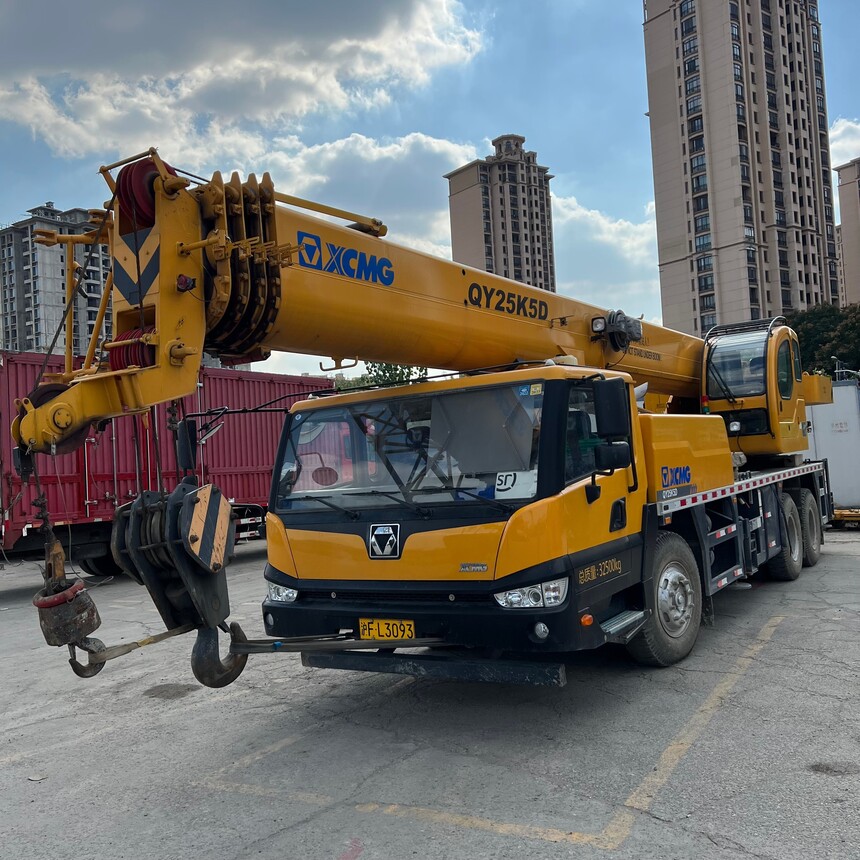

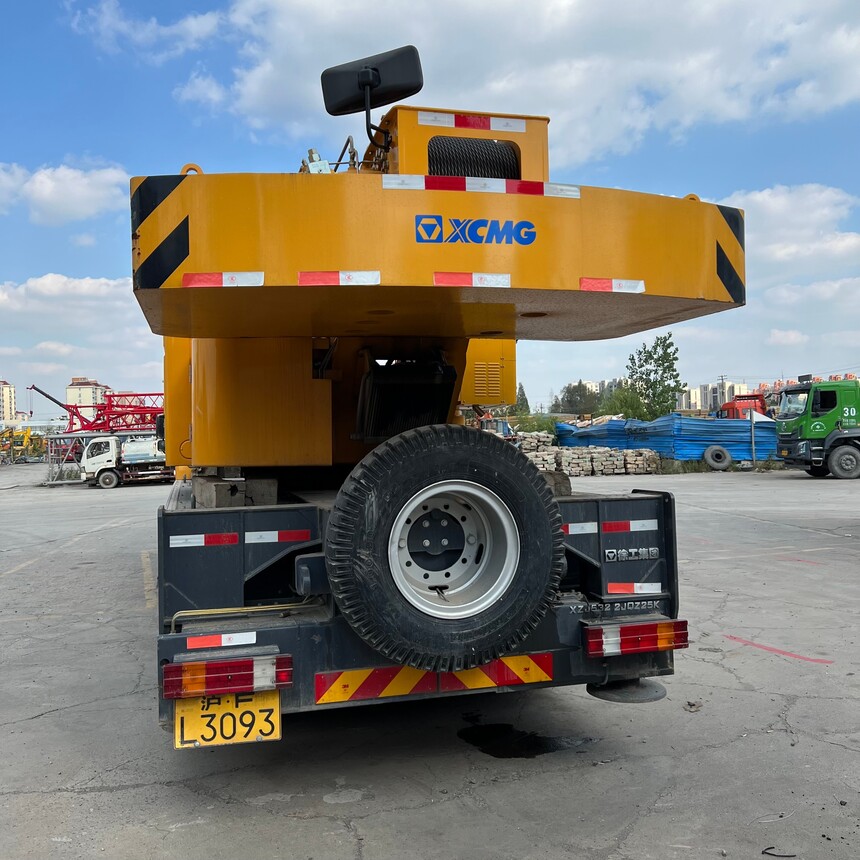

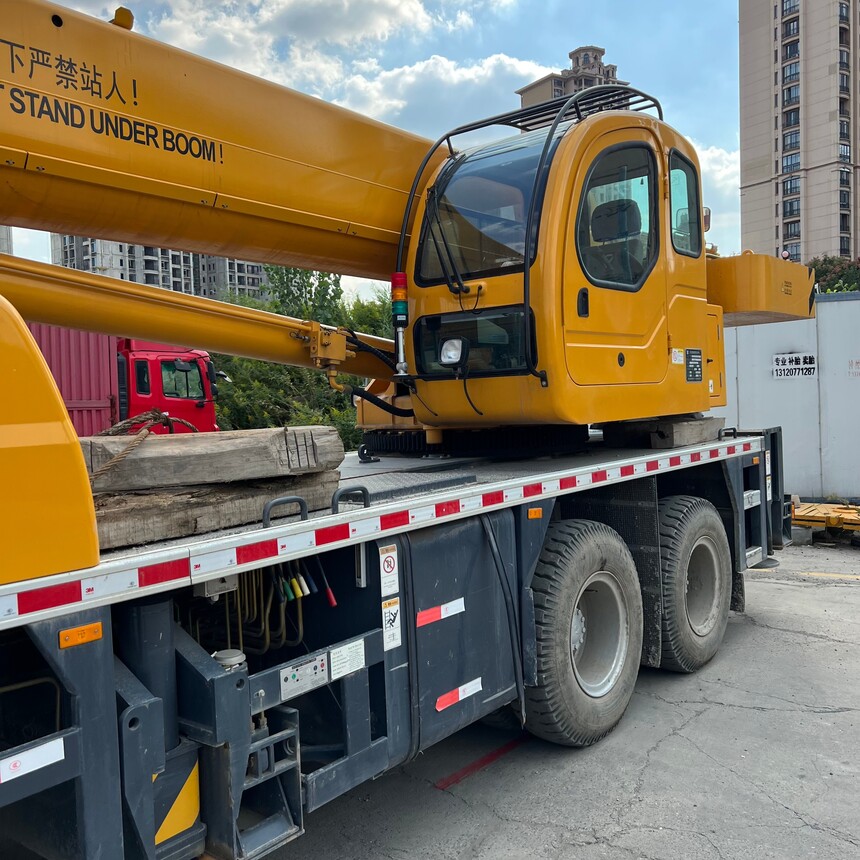

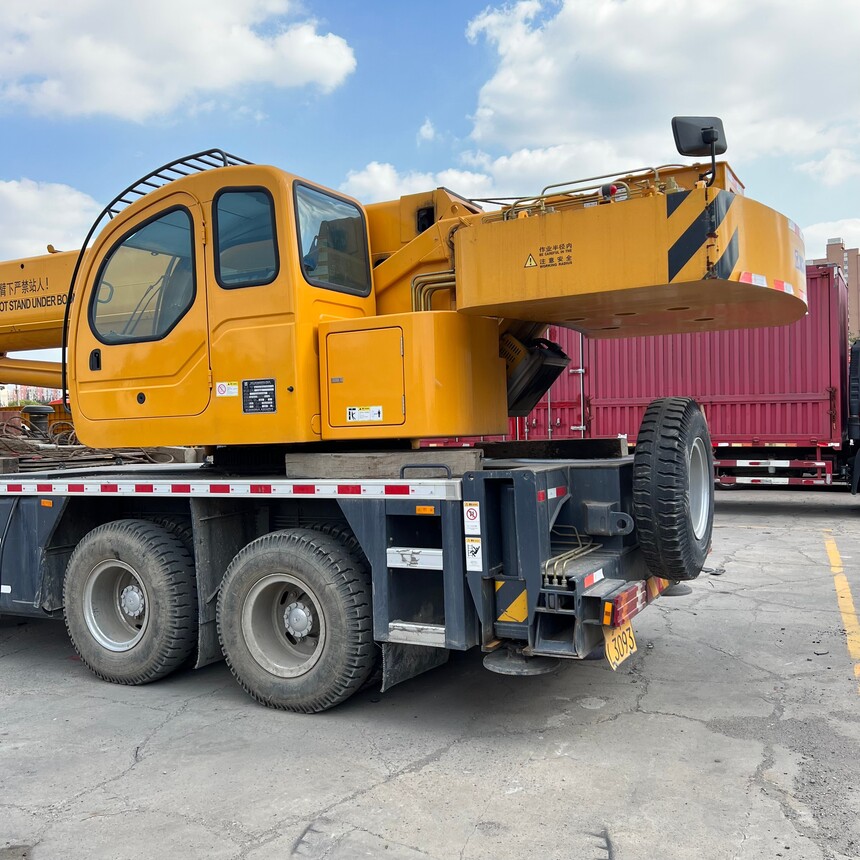

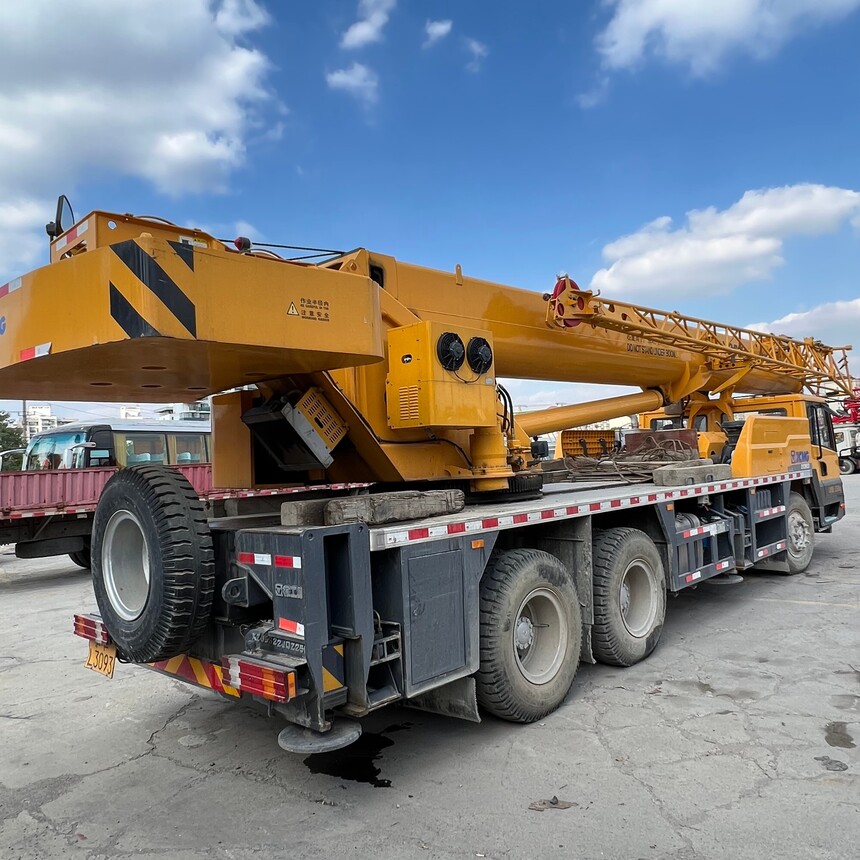

XCMG 25 -ton QY25K5D model truck crane for sale

XCMG 25 -ton QY25K5D model truck crane for sale

Basic Information

model:

QY25K5D

Overall size: length x width x height:12.3×2.5×3.35 meters

Maximum travel speed:80km/h

Minimum turning radius:11 meters

Maximum grade:40%

Approach / departure angle:16/13 degrees

Minimum ground clearance:260mm

Engine parameters

engine model:"SC8DK280Q3/WD615.329

Maximum output power:213kW

Rated speed:2200rpm

Lifting capacity

Rated lifting weight:25 tons

Rated lifting moment:961KN.m

Minimum working range:3 meters

Boom Length - Basic Boom:10.4 meters

Boom Length - Full Outreach:39.5 meters

Boom Length - Basic Boom + Jib:47.8 meters

Jib Length:8.3 meters

Job parameters

Boom full extension time:150 seconds

Boom full up/down time:68 seconds

Swing speed:2.5r/min

Outrigger span: vertical × horizontal:5.14×6 meters

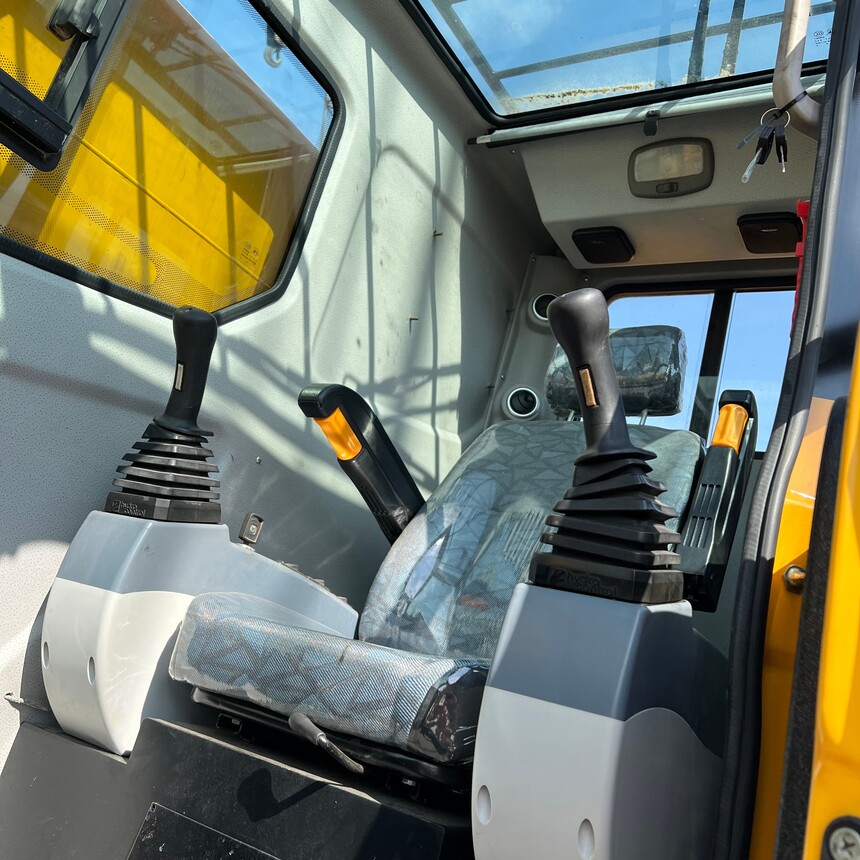

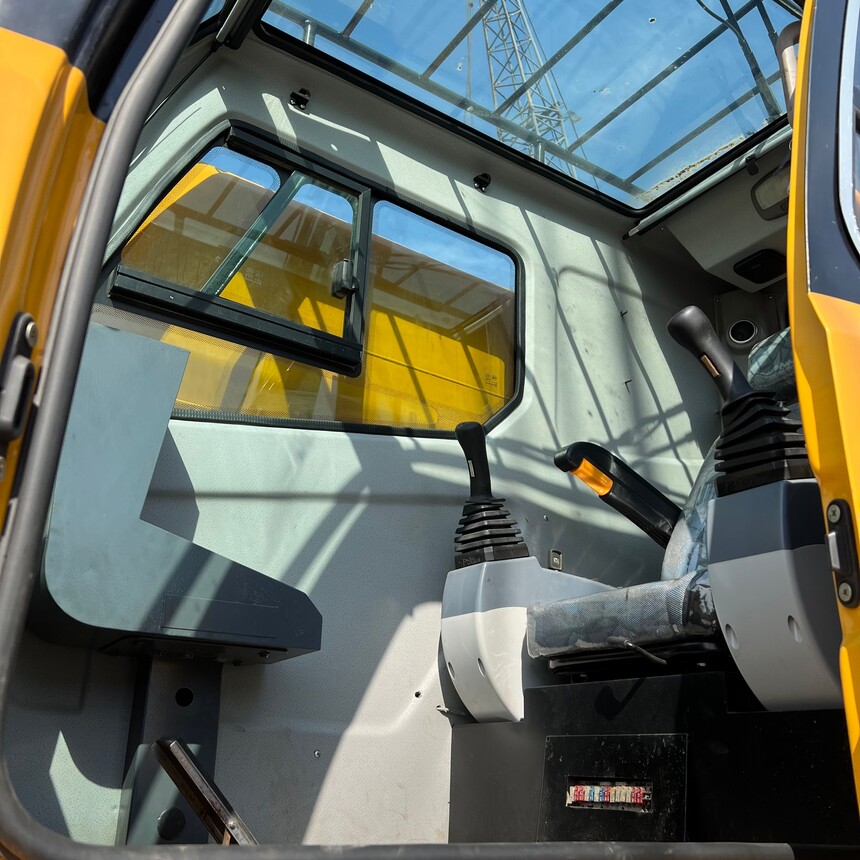

1. Action

(1) The left hand: the left and right are turn, and the small hook is forward (pay attention to stepping on the pedal, you do not step on the pedal handle without response).

(2) Right hand: to the left is the stalk, the right is lying on the right, and the big hook front and back. (Pay attention to any action, you must press the mobile switch, that is, on the back of the handle, you can also press the switch of the two -way rotation arrow on the control panel to open it for a long time).

2. Stalk

It is very simple, that is, the first yellow of the left or right hand is twisted, and the right hand is inward (the straw) is the straw, and the right hand is shrinking outward. Sometimes when you collect the car, such as the reasons for the limiter, you cannot turn off the key, because the power is off when it is turned off, so you can only follow the mandatory hook to go back.
