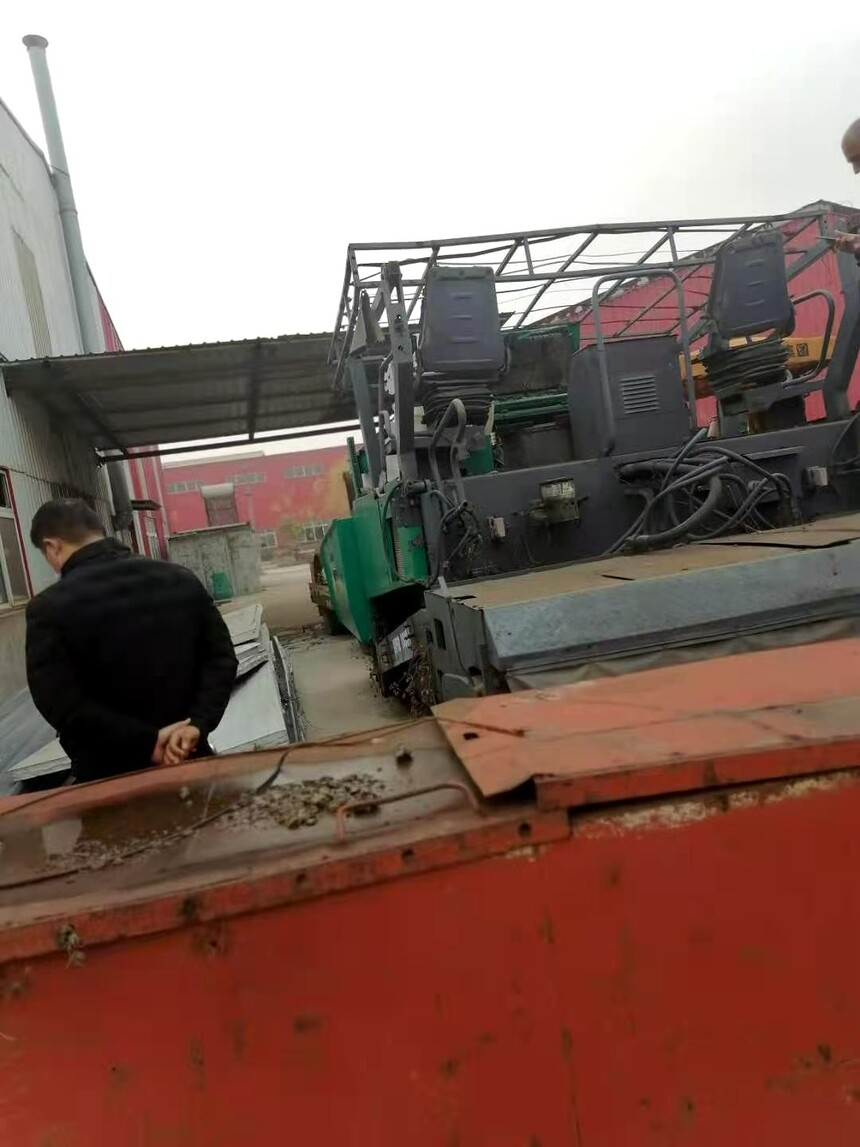

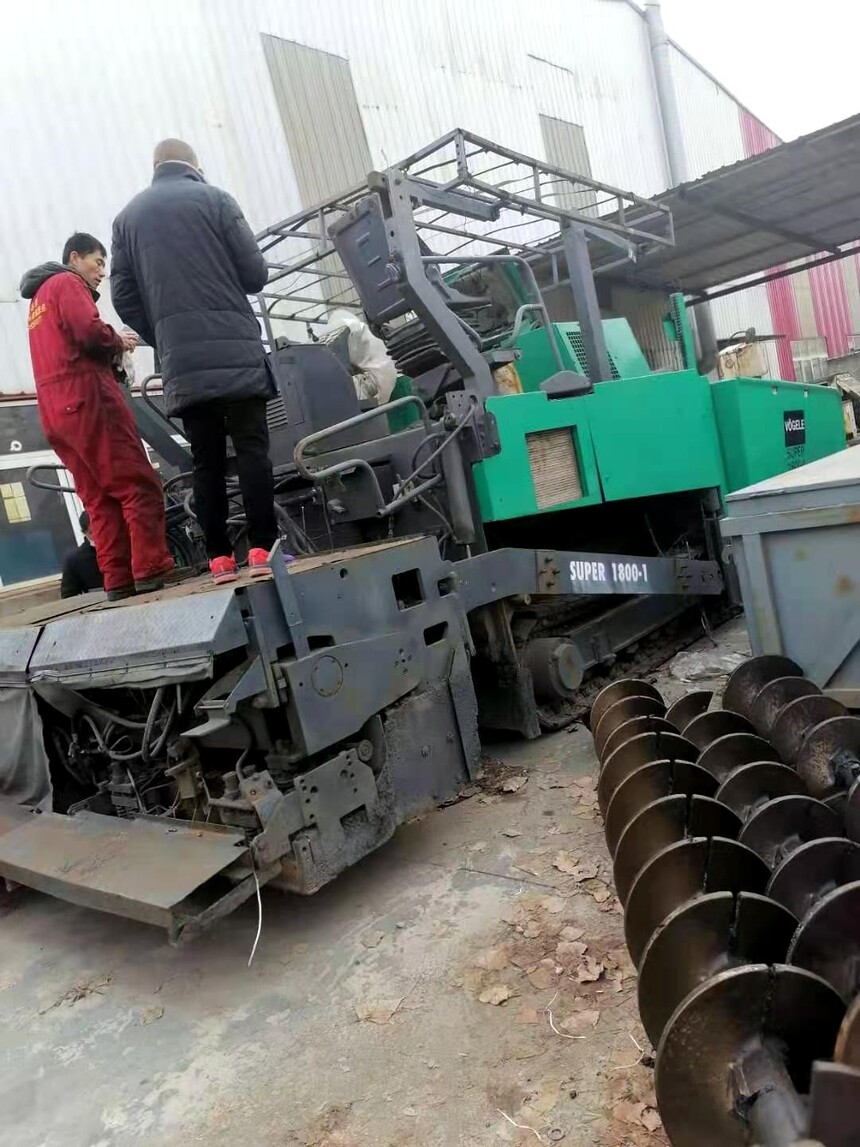

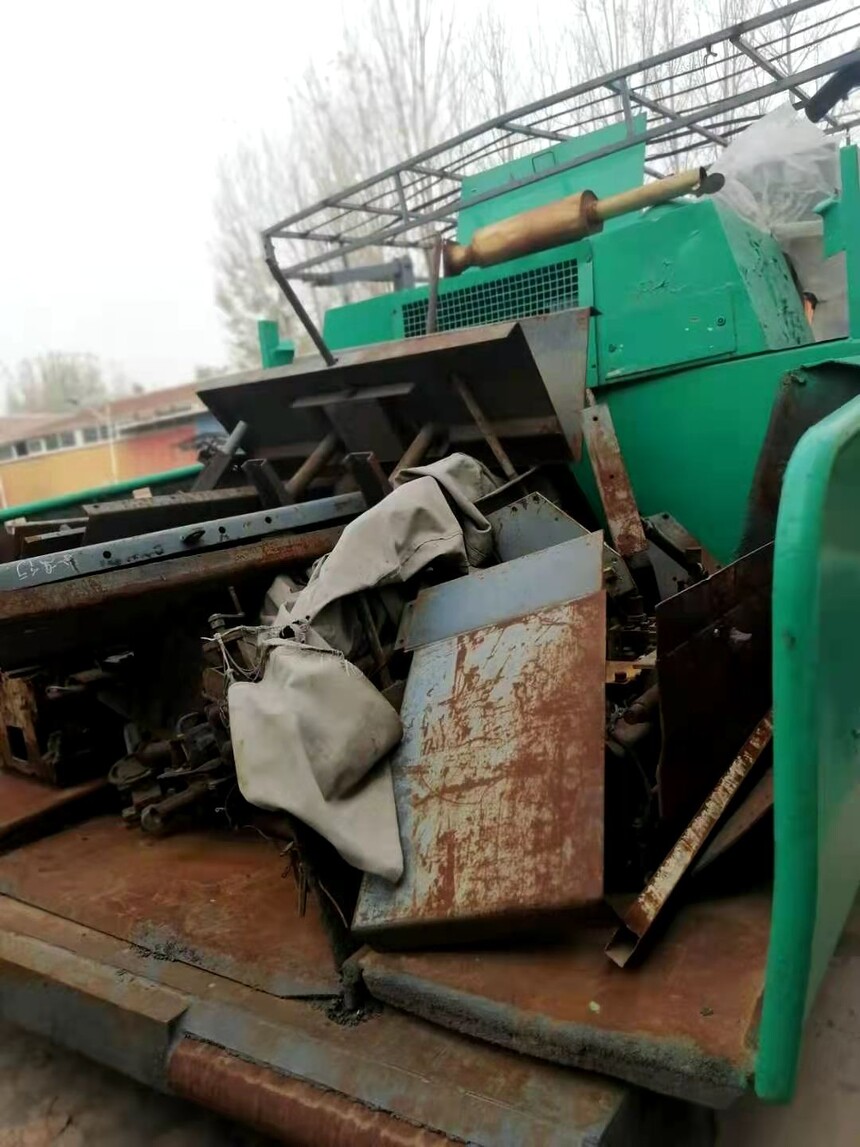

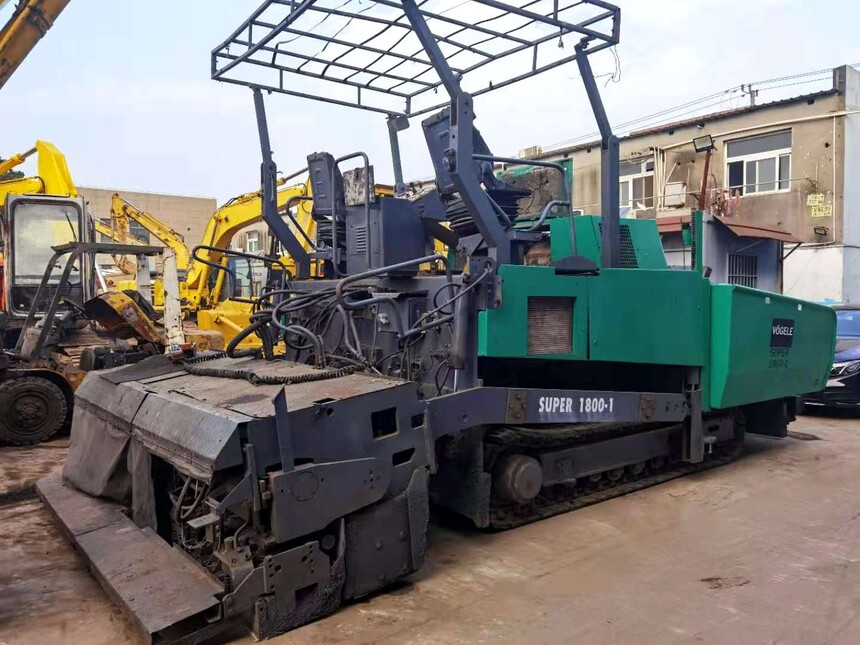

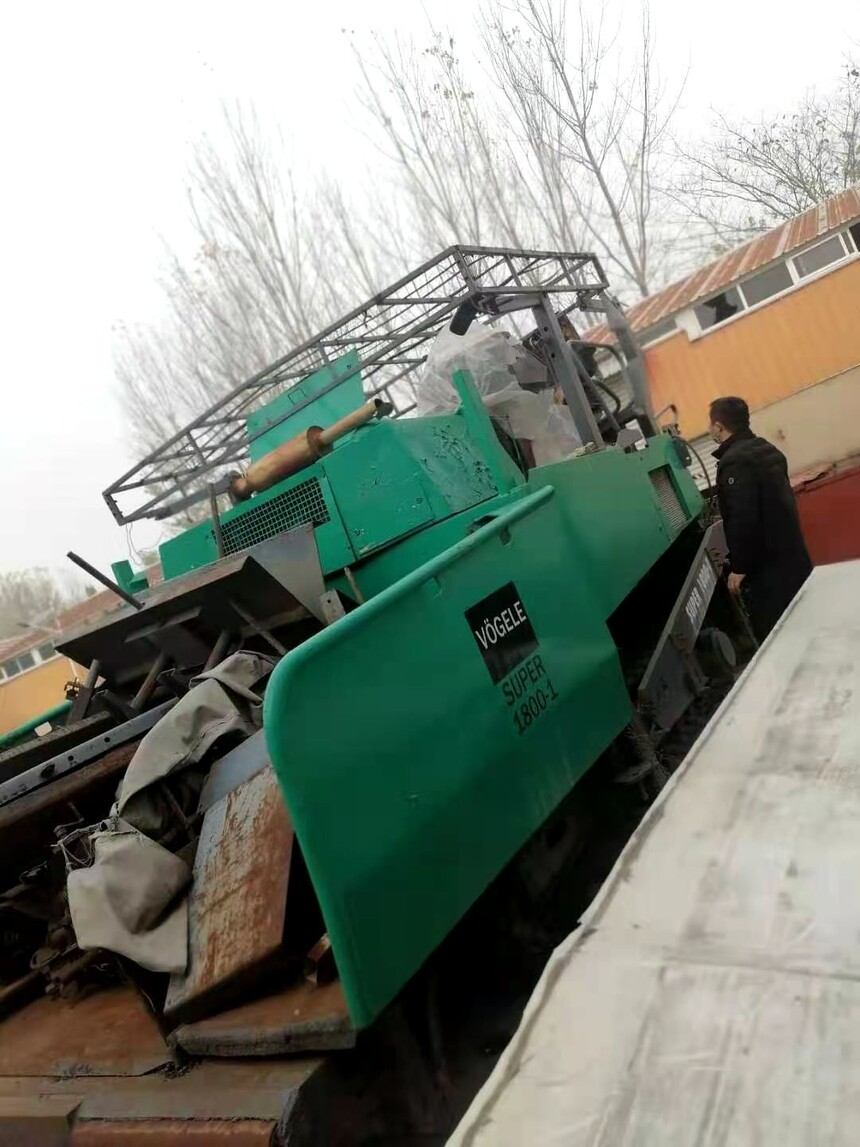

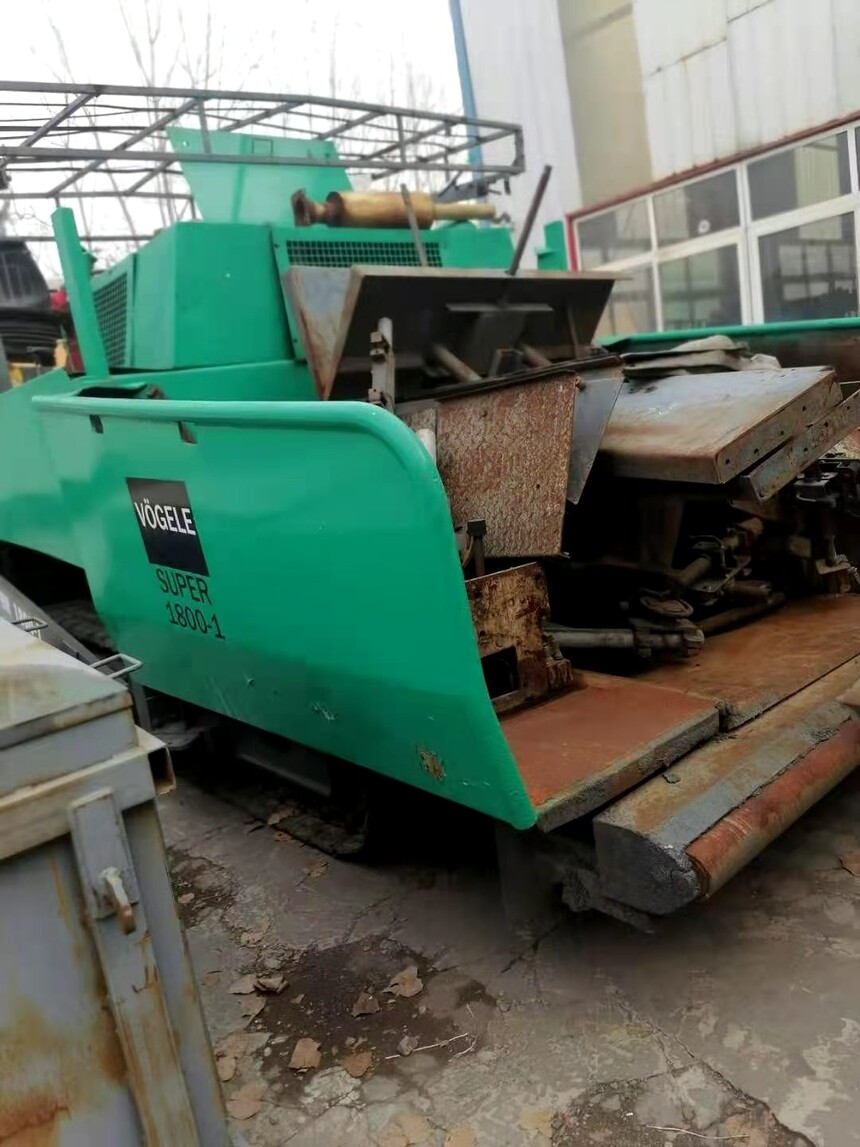

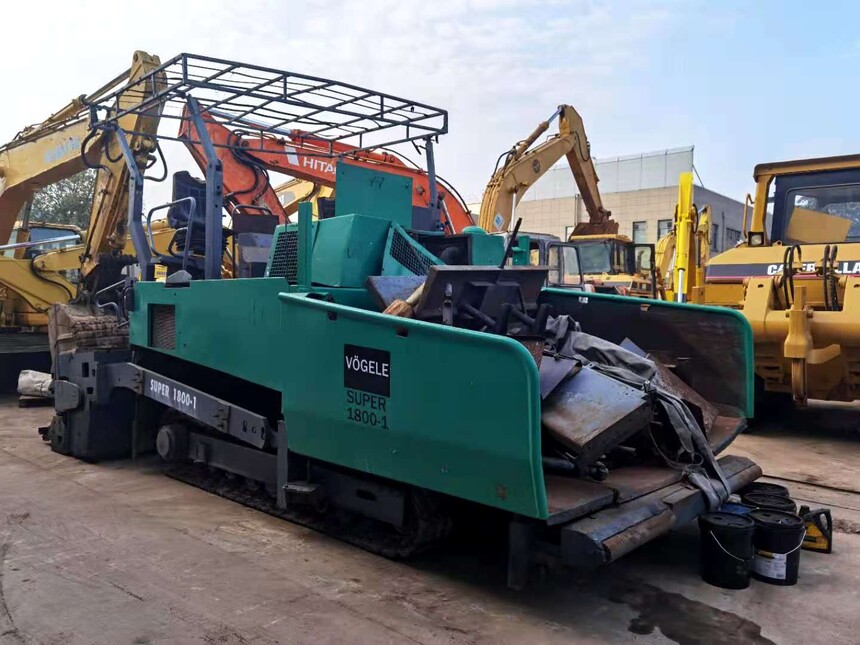

Vegele super1800-2 model 1800-1 model asphalt paving machine

Vegele super1800-2 model 1800-1 modelasphalt paving machine

Basic performance

Power 127/2000

Basic paving width (MM) 8500/9000/10000

Theoretical productivity (㎡/h) 700

Palace width (meter) over 9 meters or more

Working parameters

The paving range (MM) 8500/9000/10000

Paper thickness (mm) 300

Palace speed (m/min) 24

Driving speed (km/h) 4.5

engine

Engine model Perkins Platins 1106D-E66TA

Rated power (KW/RPM) 129.6/2000

Tin

Spiral blade diameter (MM) 400

Capacity and quality parameters

Fighting capacity (M3) 13 tons

Fuel tank (L) 300

The entire machine weight (KG) 18-20

Main dimensions

Work length (mm) 6000-6130

Work width (mm) 3265

Work Height (MM) 3800

Transport length (mm) 6000-6130

Minimum ground clearance (MM) 150

The asphalt concrete paving machine, also known as asphalt concrete paving machine, is a special construction machinery for laying asphalt concrete pavement. Its role is to spread the mixed asphalt concrete materials evenly on the bottom or grassroots of the pavement, and perform a certain degree of pre -pressure solid and plastic surgery to form the asphalt concrete grassroots or asphalt concrete surface. The paving machine can accurately ensure the thickness, width, pavement arch, flatness, and denseness of the paving layer. Therefore, it is widely used for asphalt concrete paving operations in projects such as highways, urban roads, large cargo farms, parking lots, docks and airports. The labor intensity, speed up the construction progress to ensure the quality of the pavement.

Asphalt concrete paving machines and tires are divided into two types. The biggest advantage of the crawler paving machine is that the unevenness of the road base is poor, the paving work stability is good, it has a large traction, and rarely slippery. It is mostly used in new roads and large -scale road construction.

The biggest advantage of tire asphalt paving machine is that it is good at mobility. It is suitable for running sites or long distances, and is mostly used in the construction of urban roads. When the width and thickness of the paving are large, the paving machine tires are prone to slipping.

2. What is the width of the paving width of the asphalt paving machine

Classified by paving width, asphalt paving machines can be divided into four categories: small, medium, large, and large.

1. The largest paving width of small machines is generally less than 3600mm, and it is used for construction projects for road maintenance and urban roads.

2. The paving width of the mid-size machine is 4000-6000mm, which is used for the construction and maintenance of general road pavement.

3. The paving width of large machines is between 7000-9000mm and is mainly used for high-level road pavement construction.

4. The paving width of the large machine is ≥12000mm, which is mainly used for high -speed highways, airports, docks, squares and other large -scale asphalt concrete pavements. There are few vertical seams, good overall and peaceful integration, especially paving the surface layer on the pavement.

The standard width of the asphalt paving machine is 2.5 to 3m; the maximum paving width is 12m, and the maximum paving thickness is 500mm; the paving speed is 0 to 20mm/min; The horizontal leveling essence is 0.02%～ 0.2%; the dense paving is up to 98%.
