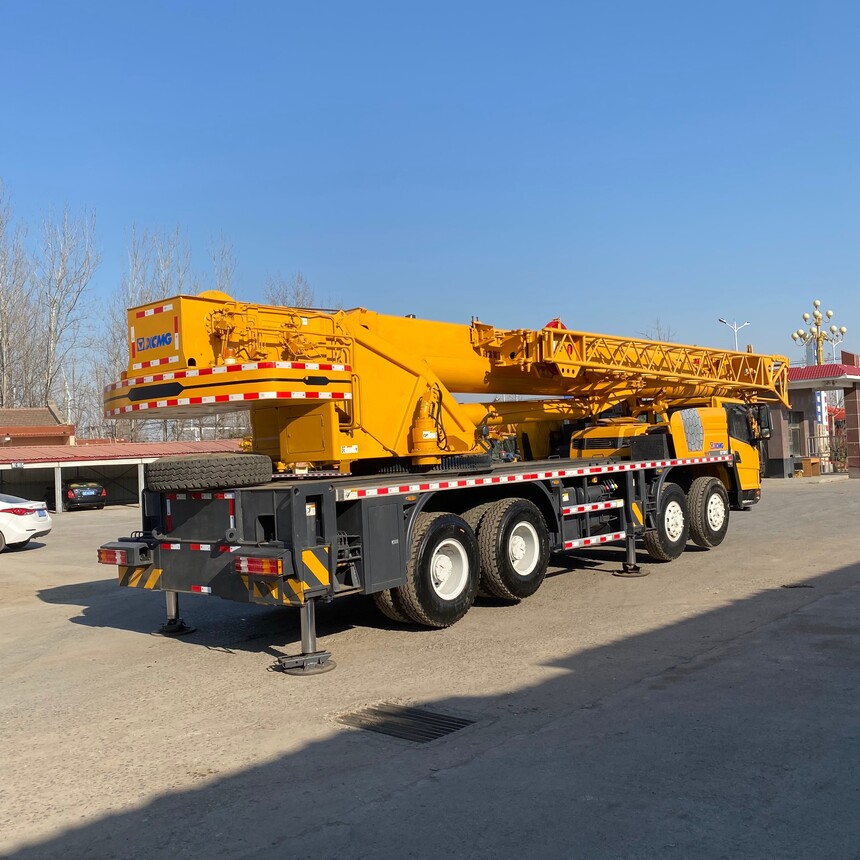

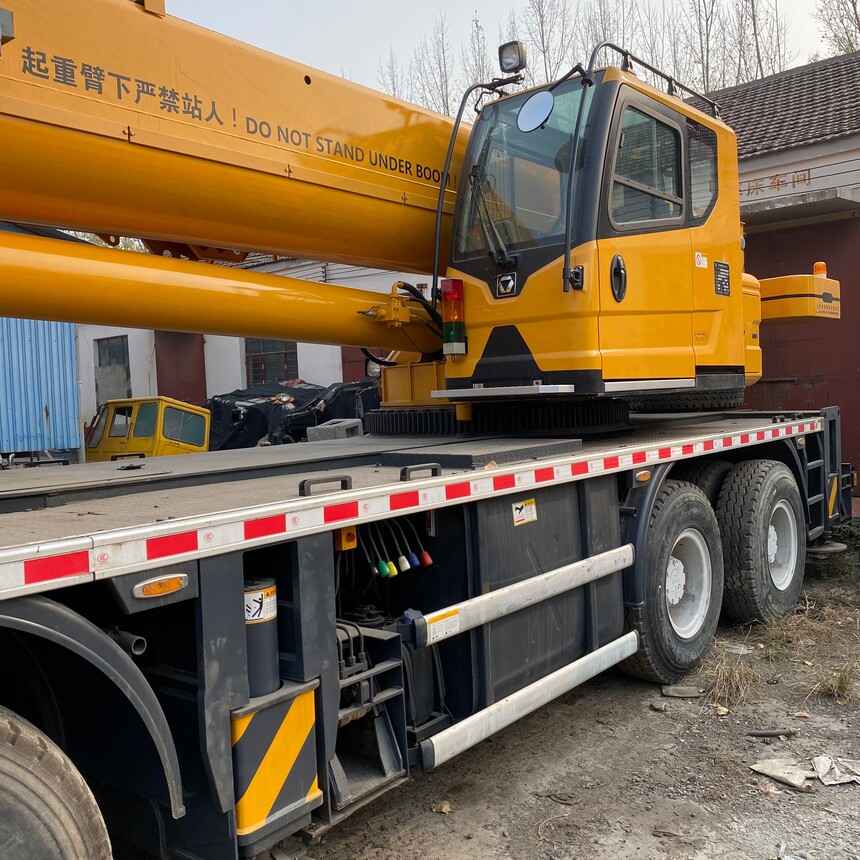

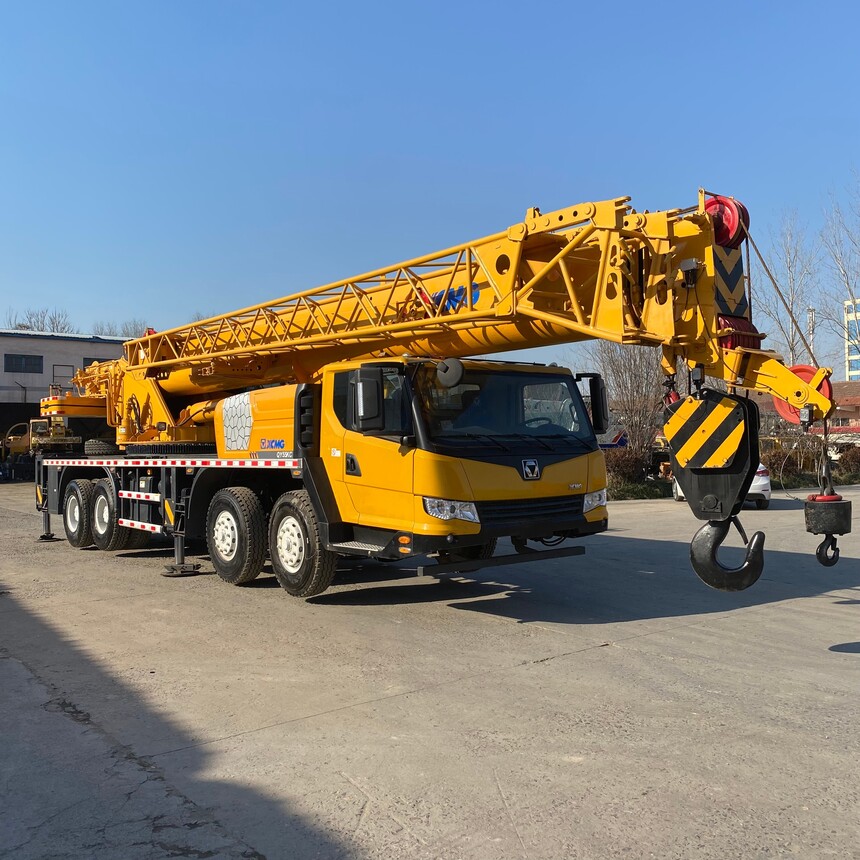

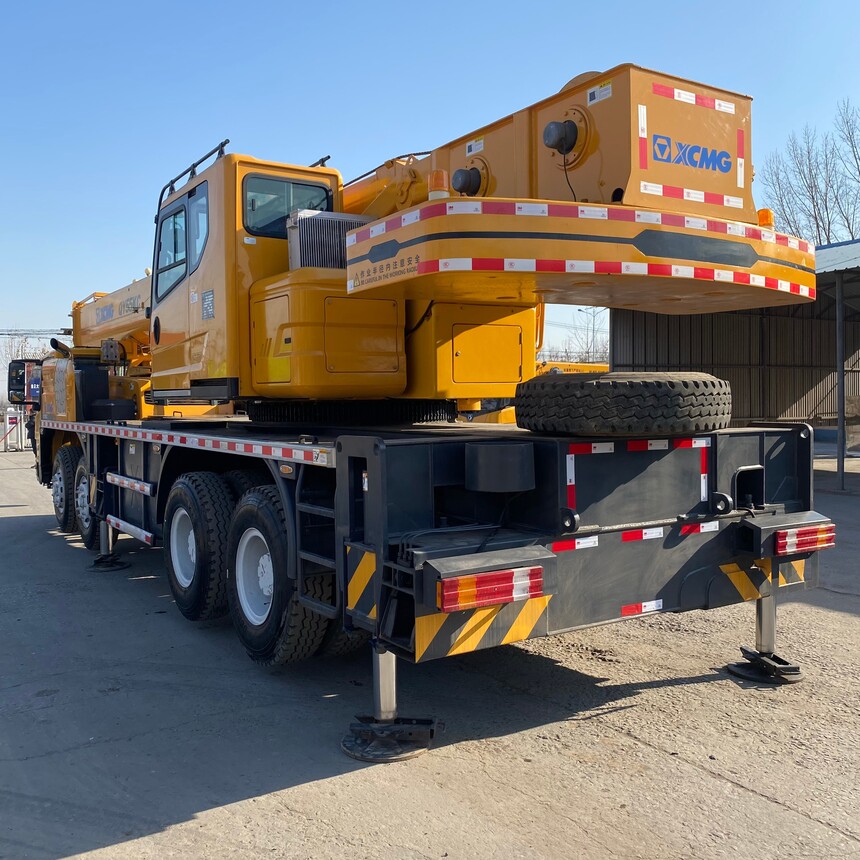

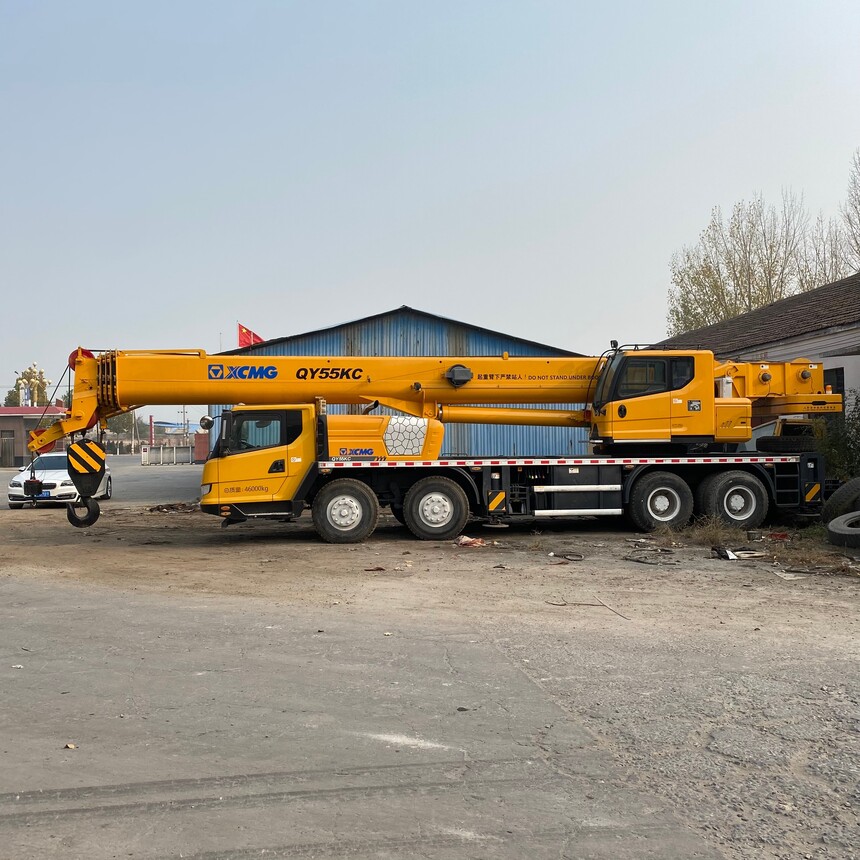

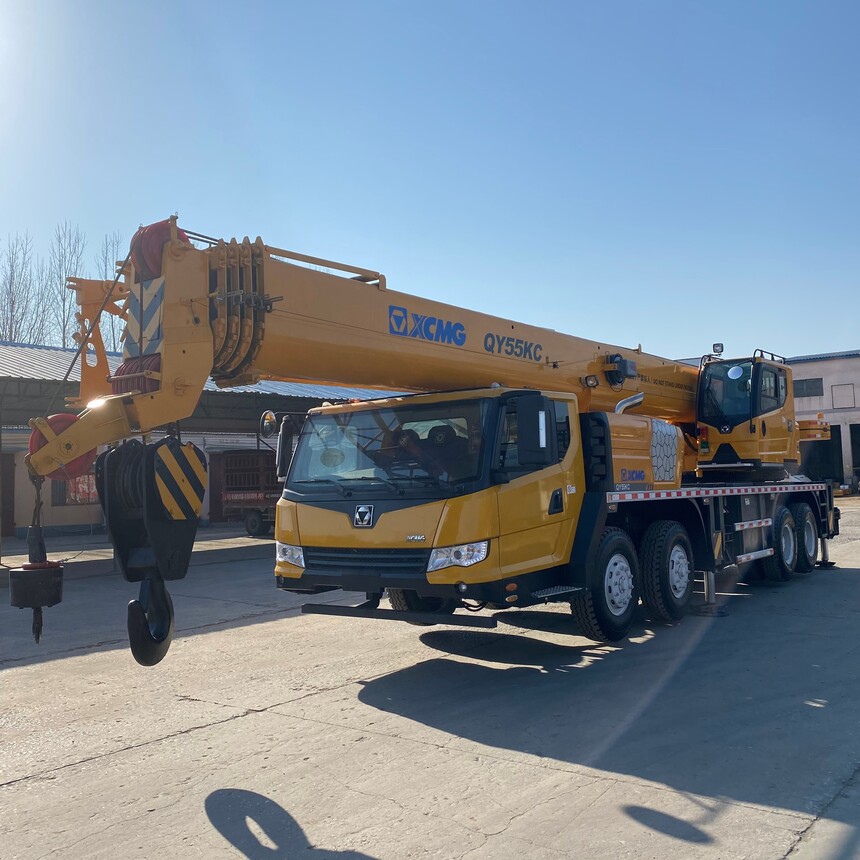

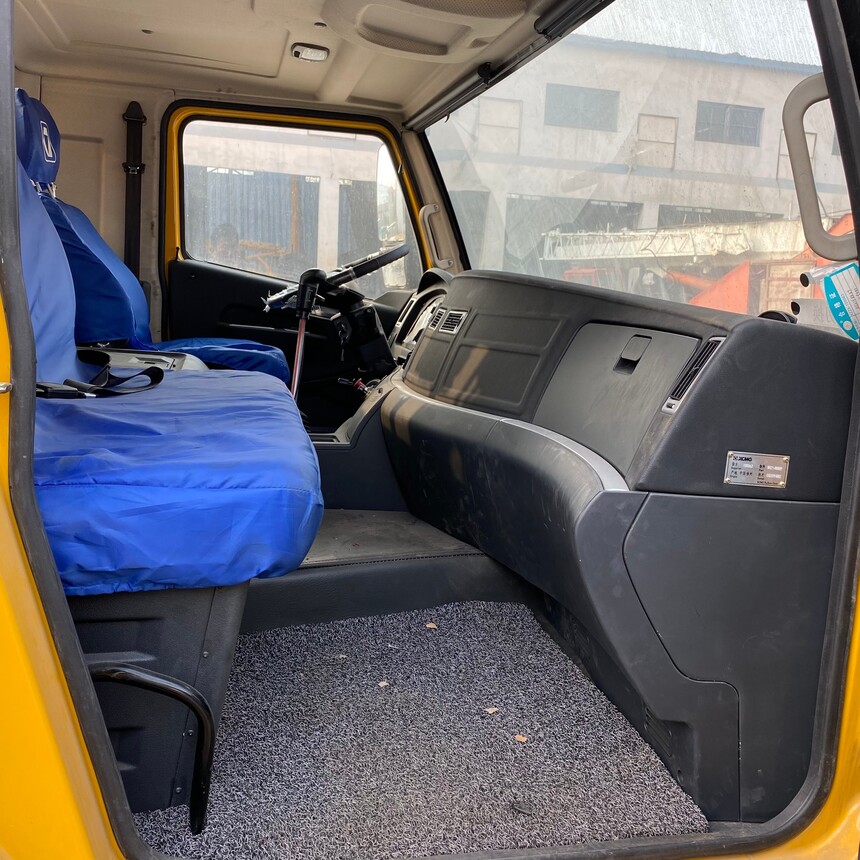

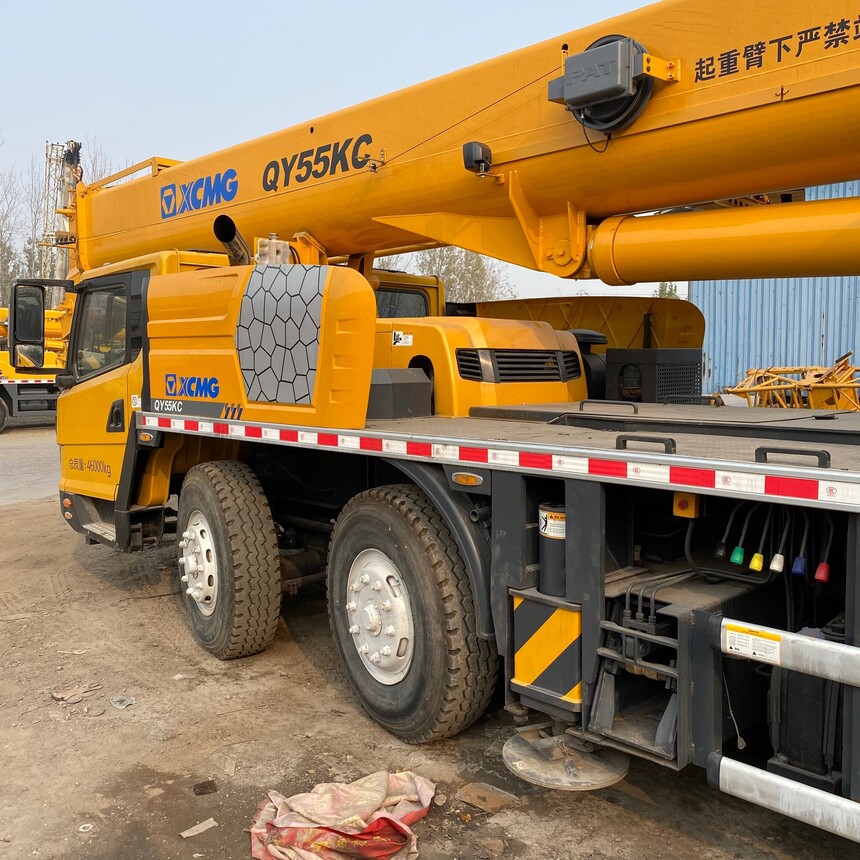

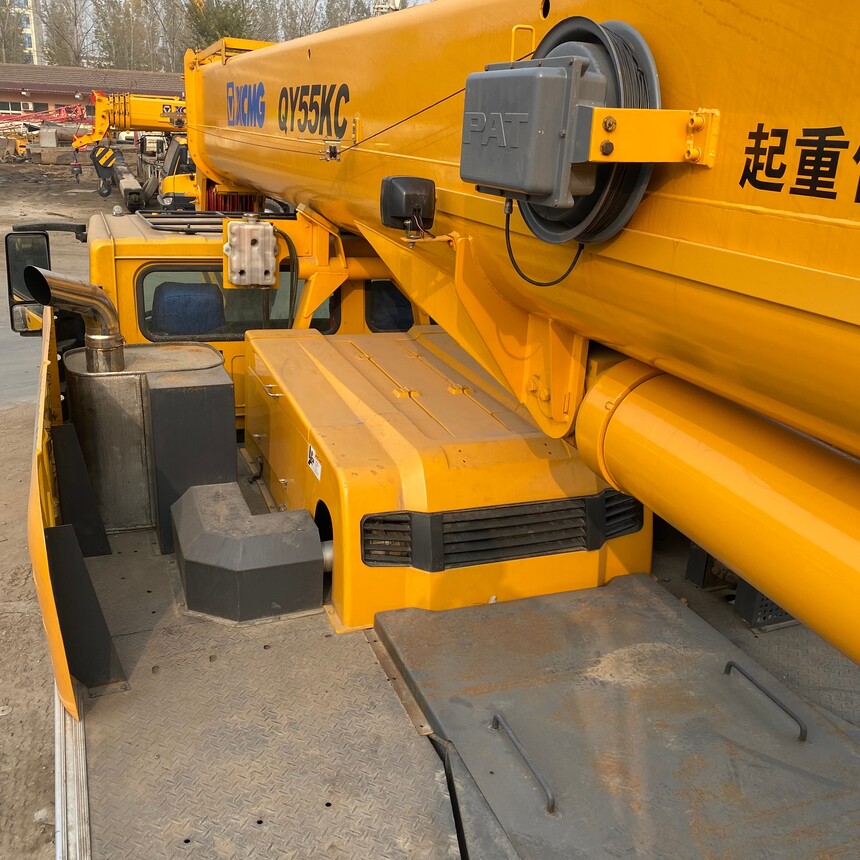

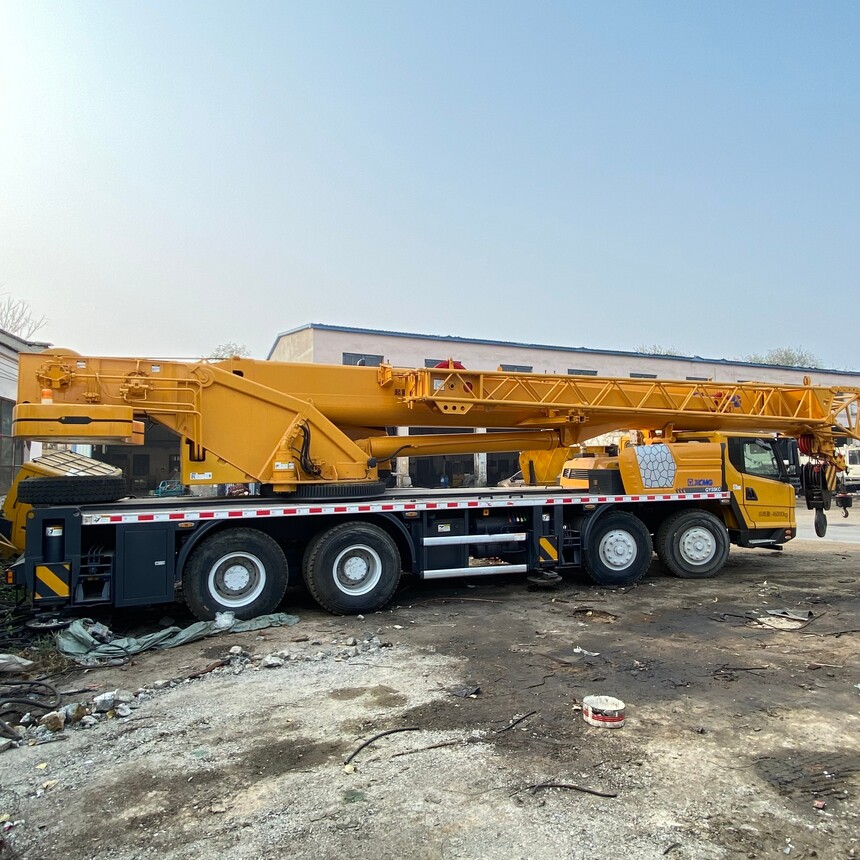

Used Chinese brand XCMG 55 -ton Truck crane QY55K model

Used Chinese brand  XCMG 55 -ton Truck crane QY55K model

Size parameters

Overall length of the whole machine (mm) 13980

Overall width of the whole machine (mm)  2550

Overall height of the whole machine (mm)  3610

Wheelbase(mm)  1470+3700+1350

Wheelbase(mm)  2124/2124/1834/1834

Weight parameter

Total mass in driving state (kg)  44000

Axle load(kg)  9000/9000/26000

Dynamic parameters

engine model

MC11.36-40 (Hangfaman) or SC10E340Q4 (Shangchai)

Engine rated power (kw/(r/min))     268/1900 251/1900

Engine rated torque (N.m/(r/min))   1800/(1000~1400) 1550/1300

driving parameters

Maximum travel speed (km/h)  90

Minimum stable driving speed (km/h)  2.5~3

turn

Minimum turning diameter (m)

twenty four

Arm head minimum turning diameter (m)  26.9

Maximum grade(%) 45

Minimum ground clearance (mm)  303.5

Approach angle (°)

16 (without front protection) / 10 (before installation)

Departure angle (°)  13

Braking distance (m)

≤10 (vehicle speed is 30km/h)

Fuel consumption per 100 kilometers (L)  35

Main performance parameters

Maximum rated total lifting weight (t)  55

Minimum rated amplitude (m)  3

The maximum lifting moment of the basic arm (kN m)  2033

Turntable tail turning radius (mm)  3845

outrigger

Longitudinal (m)  7.3

Horizontal (m) 8.035

Maximum lift height

Basic Arm(m)  11.9

The longest main boom (m) 44.5

The longest main boom + jib (m) 60.3

The longest main boom + jib + extension

Boom length

Basic arm (m) 11.6

Longest main boom (m) 44.5

Longest main boom + jib 60.5

The longest main boom + jib + extension section (m)

Speed of work

Maximum rotation speed (r/min)2

Lifting speed

main hoisting mechanism130

Auxiliary lifting mechanism130

Boom extension time

Full extension(s)80

full shrink

Amplitude time

Full lift (s)40

Full arm drop(s)

Outrigger retraction--level

Simultaneously put -- level (s)20

At the same time closing -- level (s)15

Outrigger retraction-vertical

Simultaneously put(s)35

Simultaneous receipt (s)25
